ENGINE COOLANT TEMPERATURE (ECT) SENSOR CONSTRUCTION/OPERATION [ZY, Z6]


id0140a0173400

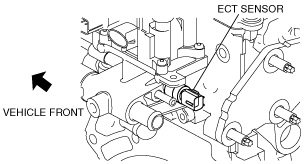

•  Installed on the water outlet.
am3zzn00001828
•  The ECT is a thermistor type, the resistance changes according to the engine coolant temperature.

ECT sensor characteristic

am3uun00000367
•  The resistance decreases if the engine coolant temperature increases, and increases if the engine coolant temperature decreases.
