VARIABLE SWIRL SHUTTER VALVE SWITCH INSPECTION [L3 Turbo]

id0140b6803000


Voltage Inspection

1.  Switch the ignition to ON (Engine off).

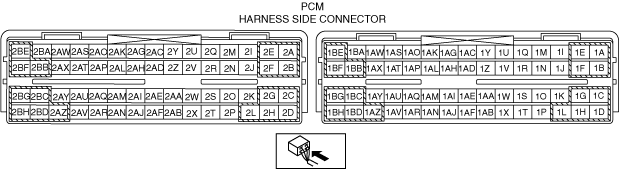

2.  Verify that the PCM terminal 2AE voltage is as shown in the following table when the variable swirl shutter valve actuator rod is depressed and released by hand.

am3uuw00006212
am6zzw00000123

•  If not as specified, replace the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L3 Turbo].)

Variable swirl shutter valve switch output voltage

Condition

PCM terminal 2AE
Released (Open position)
Below 1.0 V
Depressed (Closed position)
B+
