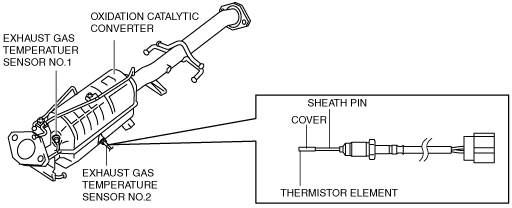

•  Installed to the 2 locations on the oxidation catalytic converter.

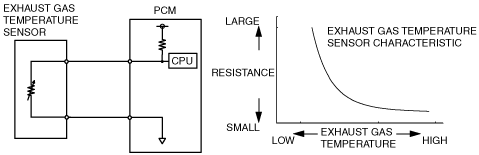

•  A thermistor element is used with the resistance varying according to the exhaust gas temperature.

•  The resistance decreases if the exhaust gas temperature increases and conversely increases if the exhaust gas temperature decreases.
