INTAKE SHUTTER VALVE POSITION SENSOR CONSTRUCTION/OPERATION [MZR-CD 2.2]


id0140f2223800

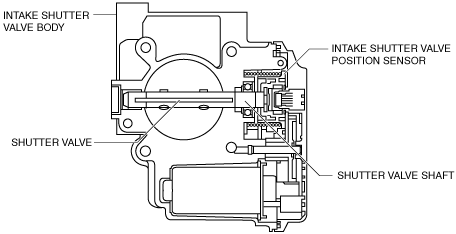

•  Consists of an integrated intake shutter valve position sensor and intake shutter valve.
•  Installed to the valve shaft so that it is linked to the opening and closing of the intake shutter valve.
am6zzn00001467
•  Hall element sensor has been adopted for the detecting element. With the adoption of a non-contact type sensor, durability is improved.
am6zzn00001057
