KNOCK SENSOR (KS) REMOVAL/INSTALLATION [LF, L5]

id0140i8802900

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [LF, L5].)

2.  Disconnect the negative battery cable.

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [LF, L5].)

4.  Remove the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [LF, L5].)

5.  Disconnect the KS connector.

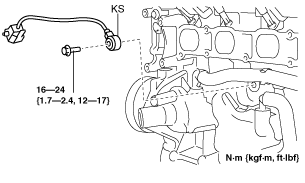

6.  Remove the KS.

am5ezw00001549

7.  Install in the reverse order of removal.
