MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REMOVAL/INSTALLATION [LF, L5]

id0140i8804300

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [LF, L5].)

2.  Disconnect the negative battery cable.

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [LF, L5].)

4.  Disconnect the MAP sensor connector.

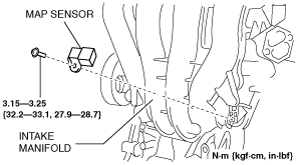

5.  Remove the MAP sensor.

am5ezw00001555

6.  Install in the reverse order of removal.
