•  Installed on the main battery and sub battery.

am3zzn00002724

•  The hall element design has been adopted for the sensor.

•  Voltage is output based on the electrical current flowing to the negative battery cable.

•  Output voltage increases as the current increases positively (recharge-side).

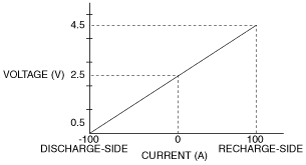

Current sensor No.1, No.2 characteristic

am3zzn00003177
