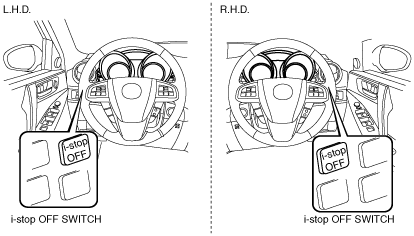

•  Installed on the switch panel.

am3zzn00002714

•  When the i-stop OFF switch is pressed, the contact point closes (on) and the PCM detects 0 V. Conversely, while the i-stop OFF switch is not pressed, the contact point opens (off) and the PCM detects 12 V.
