TIRE PRESSURE MONITORING SYSTEM (TPMS) WIRING DIAGRAM

id020200800100

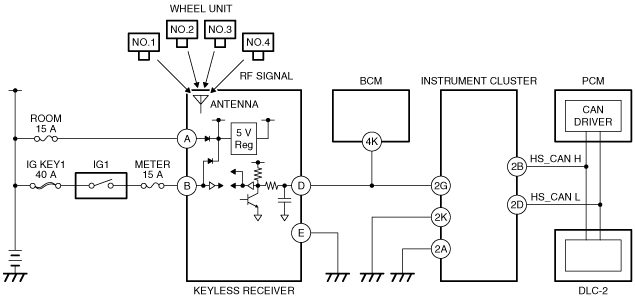

Vehicles Without Advanced Keyless Entry And Push Button Start System

am3zzw00005161

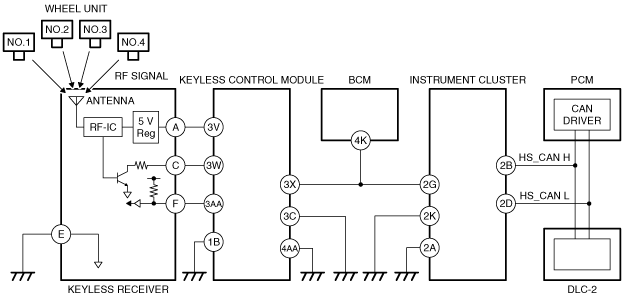

Vehicles With Advanced Keyless Entry And Push Button Start System

am3zzw00005162
