JOINT SHAFT ASSEMBLY [ZY]
id0313008011u8

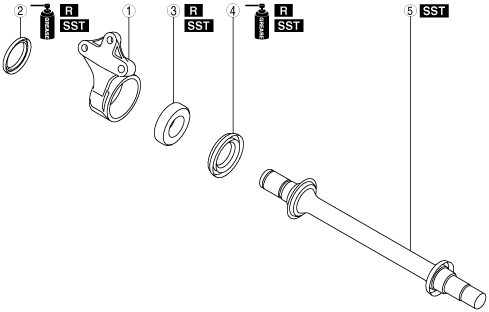

1. Assemble in the order indicated in the table.
am3zzw00008303
|
|
1
|
Bracket
|
|
2
|
Dust seal (RH)
(See Dust Seal (RH) Assembly Note.)
|
|
3
|
Bearing
(See Bearing Assembly Note.)
|
|
4
|
Dust seal (LH)
(See Dust Seal (LH) Assembly Note.)
|
|
5
|
Joint shaft
(See Joint Shaft Assembly Note.)
|
Dust Seal (RH) Assembly Note
1. Apply grease to a new dust seal lip.
2. Install the dust seal (RH) using the SSTs.
am3zzw00008304
|
Bearing Assembly Note
1. Install a new bearing using the SSTs.
am3zzw00008305
|
Dust Seal (LH) Assembly Note
1. Apply grease to a new dust seal lip.
2. Install a new dust seal (LH) using the steel plate and the SSTs.
am3zzw00008306
|
Joint Shaft Assembly Note
1. Press fit the joint shaft using the SST and a press.
am3zzw00008307
|
