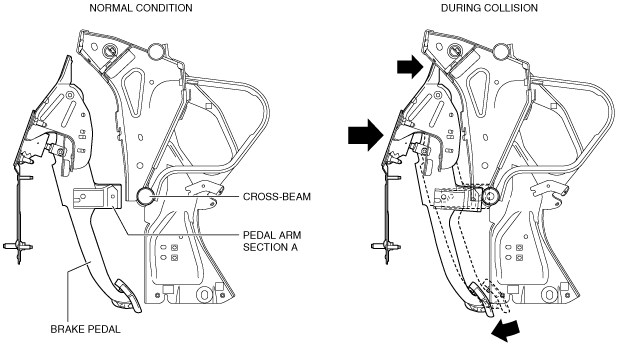

•  In a frontal collision, the brake pedal is forced rearward by the movement of the engine and other parts.

•  Pedal arm section A of the rearward moving brake pedal contacts the cross-beam.

•  Pedal arm section A rotates where it contacts the cross-beam, preventing rearward movement of the brake pedal.
