VACUUM HOSE REMOVAL/INSTALLATION [L3 Turbo]


id041100801690

1.  Remove the charge air cooler cover. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L3 Turbo].)

2.  Remove the charge air cooler. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L3 Turbo].)

3.  Remove the insulator. (R.H.D.) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [L3 Turbo].)

4.  Insert a thin flathead screwdriver at the point indicated by the arrow in the figure, push the ring down and disconnect the vacuum hose from the intake manifold.

am3uuw00001798

5.  Remove the vacuum hose from the vacuum hose clip.

am3zzw00008578

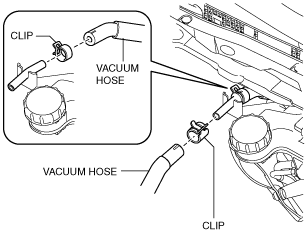

6.  Pinch open the clip using pliers and disconnect the vacuum hose from the insulator bracket as shown in the figure. (L.H.D.)

am3uuw00005755

7.  Pinch open the clip using pliers and disconnect the vacuum hose from the power brake unit.

8.  Pinch open the clip using pliers and disconnect the vacuum hose from the vacuum pipe. (R.H.D.)

9.  Remove the vacuum hose.

10.  Install in the reverse order of removal.

11.  Verify that the vacuum hose is inserted so that the joint contacts the intake manifold ring.

am3uuw00001801
