ABS LOCATION INDEX

id041300801100

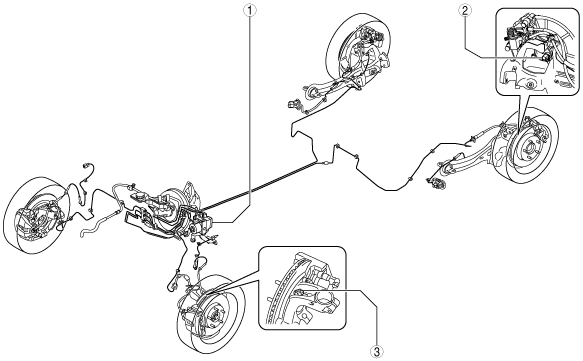

L.H.D.

am3zzw00007523

1	ABS HU/CM (See ABS HU/CM REMOVAL/INSTALLATION.) (See ABS HU/CM INSPECTION.)
2	Rear ABS wheel-speed sensor (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION.)
3	Front ABS wheel-speed sensor (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.)

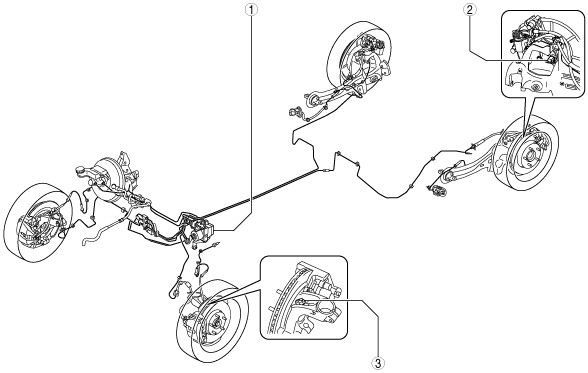

R.H.D.

am3zzw00008004

1	ABS HU/CM (See ABS HU/CM REMOVAL/INSTALLATION.) (See ABS HU/CM INSPECTION.)
2	Rear ABS wheel-speed sensor (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION.)
3	Front ABS wheel-speed sensor (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.)
