TCS CONTROL OUTLINE

id041500101300

Outline

Note

•  Brake control: Brake fluid pressure from the hydraulic unit to the slipping driving wheel is increased, operating the brake and preventing driving wheel slip.

Features

•  The left and right wheels are controlled at the same time by electronic throttle control, fuel cut, and ignition timing control. Therefore, when the road surface friction coefficients differ between the left and right wheels, proper torque reduction cannot be performed separately for each wheel. When this occurs, torque reduction is performed by independent left and right wheel brake control, providing more stable vehicle control.

STRUCTURE

Note

•  Vehicles with combined sensor: Applied VIN (assumed)

European (L.H.D. U.K.) specs.

•  JMZ BL12F60# 100001—181415

•  JMZ BL12F70# 100001—181415

•  JMZ BL12Y20# 100001—181415

•  JMZ BL12Z20# 100001—181415

•  JMZ BL12Z50# 100001—181415

•  JMZ BL14F60# 100001—181415

•  JMZ BL14F70# 100001—181415

•  JMZ BL14Y20# 100001—181415

•  JMZ BL14Z20# 100001—181415

•  JMZ BL14Z50# 100001—181415

•  JMZ BLA2A60# 100001—181415

•  JMZ BLA2C60# 100001—181415

•  JMZ BLA2F70# 100001—181415

•  JMZ BLA2G60# 100001—181415

•  JMZ BLA2Y60# 100001—181415

•  JMZ BLA2Z20# 100001—181415

•  JMZ BLA2Z50# 100001—181415

•  JMZ BLA4360# 100001—181415

•  JMZ BLA4A60# 100001—181415

•  JMZ BLA4C60# 100001—181415

•  JMZ BLA4F70# 100001—181415

•  JMZ BLA4G60# 100001—181415

•  JMZ BLA4Y60# 100001—181415

•  JMZ BLA4Z20# 100001—181415

•  JMZ BLA4Z50# 100001—181415

Australian specs.

•  JM0 BL103100 100001—225632

•  JM0 BL10C100 100001—225632

•  JM0 BL10F100 100001—225632

•  JM0 BL10L100 100001—225632

General (R.H.D.) specs.

•  JM6 BL1031*0 100001—225632

•  JM6 BL1051*0 100001—225632

•  JM6 BL10F1*0 100001—225632

•  JM6 BL10L1*0 100001—225632

•  JM6 BL10Z1*0 100001—225632

General (L.H.D.) specs., Arab Gulf Cooperation Council, China

•  JM7 BL04F**# 100001—225632

•  JM7 BL04Z**# 100001—225632

•  JM7 BL12F**# 100001—225632

•  JM7 BL12Z**# 100001—225632

•  JM7 BL14F**# 100001—225632

•  JM7 BL14Z**# 100001—225632

•  JM7 BL22F**# 100001—225632

•  JM7 BL22Z**# 100001—225632

•  JM7 BL24F**# 100001—225632

•  JM7 BL24Z**# 100001—225632

•  Vehicles without combined sensor: Applied VIN (assumed)

European (L.H.D. U.K.) specs.

•  JMZ BL12F60# 181416—

•  JMZ BL12F70# 181416—

•  JMZ BL12Y20# 181416—

•  JMZ BL12Z20# 181416—

•  JMZ BL12Z50# 181416—

•  JMZ BL14F60# 181416—

•  JMZ BL14F70# 181416—

•  JMZ BL14Y20# 181416—

•  JMZ BL14Z20# 181416—

•  JMZ BL14Z50# 181416—

•  JMZ BLA2A60# 181416—

•  JMZ BLA2C60# 181416—

•  JMZ BLA2F70# 181416—

•  JMZ BLA2G60# 181416—

•  JMZ BLA2Y60# 181416—

•  JMZ BLA2Z20# 181416—

•  JMZ BLA2Z50# 181416—

•  JMZ BLA4360# 181416—

•  JMZ BLA4A60# 181416—

•  JMZ BLA4C60# 181416—

•  JMZ BLA4F70# 181416—

•  JMZ BLA4G60# 181416—

•  JMZ BLA4Y60# 181416—

•  JMZ BLA4Z20# 181416—

•  JMZ BLA4Z50# 181416—

Australian specs.

•  JM0 BL103100 225633—

•  JM0 BL10C100 225633—

•  JM0 BL10F100 225633—

•  JM0 BL10L100 225633—

General (R.H.D.) specs.

•  JM6 BL1031*0 225633—

•  JM6 BL1051*0 225633—

•  JM6 BL10F1*0 225633—

•  JM6 BL10L1*0 225633—

•  JM6 BL10Z1*0 225633—

General (L.H.D.) specs., Arab Gulf Cooperation Council, China

•  JM7 BL04F**# 225633—

•  JM7 BL04Z**# 225633—

•  JM7 BL12F**# 225633—

•  JM7 BL12Z**# 225633—

•  JM7 BL14F**# 225633—

•  JM7 BL14Z**# 225633—

•  JM7 BL22F**# 225633—

•  JM7 BL22Z**# 225633—

•  JM7 BL24F**# 225633—

•  JM7 BL24Z**# 225633—

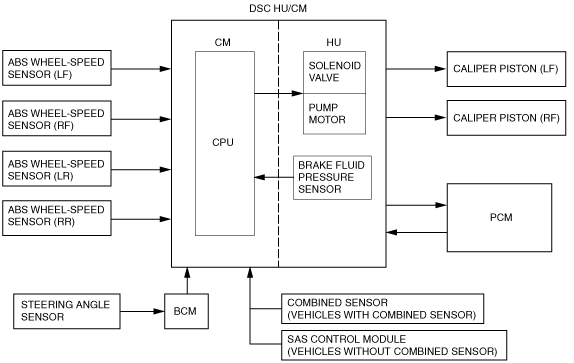

Block Diagram

am3zzn00003113
