ON-BOARD DIAGNOSTIC SYSTEM MALFUNCTION DETECTION FUNCTION [DJVA-EL]


id050212280100


Function

•  In the malfunction detection function, the TCM detects malfunctions in the transaxle while driving.

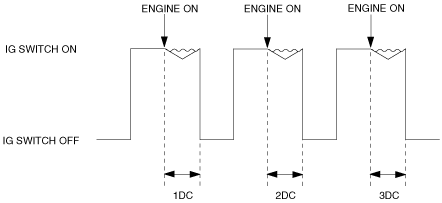

•  When vehicle driving conditions correspond with a preset malfunction detection condition, the TCM determines that the transaxle has a malfunction and stores the corresponding DTC.
•  When a malfunction is detected, stored DTCs can be retrieved using the scan tool connected to the DLC-2.

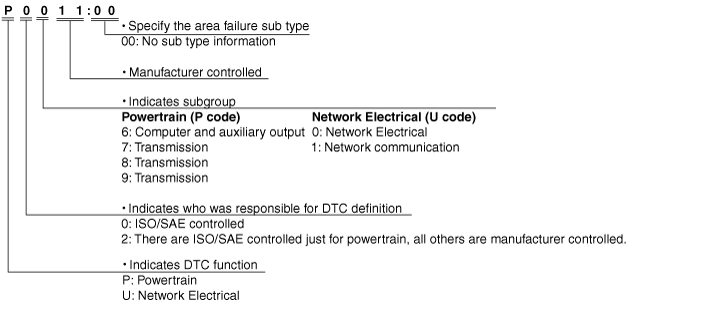

DTC 7-digit Code Definition

•  When related systems or components have failed, the CM stores the DTC of the malfunctioning part in the CM memory, and allows for the retrieval of the store data using scanning tool when necessary. The DTCs are indicated using seven digits. Each digit indicates the following.
am3zzn00003021

DTC Table

DTC No.

Definition

AT warning light

DC

Pending code

P0601:00
Flash ROM malfunction
Illuminate
1
-
P0603:00
EEPROM malfunction
Illuminate
1
-
P0604:00
RAM malfunction
Illuminate
1
-
P0707:00
TR switch multi-input
Illuminate
1
-
P0708:00
TR switch open circuit
Illuminate
2
Available
P0711:00
TFT sensor function malfunction
-
2
Available
P0712:00
TFT sensor short to GND
Illuminate
1
-
P0713:00
TFT sensor open circuit, power supply short circuit
Illuminate
1
-
P0715:00
Input/turbine speed sensor signal malfunction
Illuminate
1
-
P0717:00
Input/turbine speed sensor signal not input
Illuminate
1
-
P0720:00
Secondary pulley speed sensor signal malfunction
Illuminate
1
-
P0722:00
Secondary pulley speed sensor signal not input
Illuminate
1
-
P072A:00
Neutral control engagement malfunction
-
2
Available
P072C:00
Down shift malfunction, up shift disabled
-
2
Available
P073C:00
Up shift malfunction, down shift disabled
-
2
Available
P0740:00
TCC solenoid short to GND
Illuminate
1
-
P0741:00
Neutral control release malfunction
-
2
Available
P0742:00
Clutch slippage
-
2
Available
P0743:00
TCC solenoid short to GND
Illuminate
1
-
P0793:00
Primary pulley speed sensor signal not input
Illuminate
1
-
P0819:00
M range switch/up switch/down switch circuit malfunction (open circuit/short circuit)
Illuminate
1
-
P0841:00
Oil pressure sensor function malfunction
-
2
Available
P0842:00
Oil pressure sensor signal circuit short to GND
Illuminate
1
-
P0843:00
Oil pressure sensor power supply circuit short to GND, power supply short circuit
Illuminate
1
-
P0864:00
Grade sensor function malfunction
Illuminate
1
-
P0865:00
Grade sensor signal circuit short to GND, open circuit, power supply short circuit
Illuminate
1
-
P0866:00
Grade sensor power supply circuit short to GND, power supply short circuit
Illuminate
1
-
P0882:00
Battery voltage low
-
1
-
P0883:00
Battery voltage high
-
1
-
P0973:00
Shift control solenoid No. 1 short to GND
Illuminate
1
-
P0974:00
Shift control solenoid No. 1 open circuit, power supply short circuit
Illuminate
1
-
P0976:00
Shift control solenoid No. 2 short to GND
Illuminate
1
-
P0977:00
Shift control solenoid No. 2 open circuit, power supply short circuit
Illuminate
1
-
P2714:00
Belt grip pressure malfunction
-
2
Available
P2719:00
Belt grip pressure linear solenoid stuck
Illuminate
1
-
P2720:00
Belt grip pressure linear solenoid short to GND
Illuminate
1
-
P2721:00
Belt grip pressure linear solenoid open circuit, power supply short circuit
Illuminate
1
-
P2757:00
Stuck in TCC OFF
-
2
Available
P2758:00
Stuck in TCC ON
-
1
-
P2763:00
TCC engage solenoid open circuit, power supply short circuit
Illuminate
1
-
P2764:00
TCC engage solenoid short to GND
Illuminate
1
-
U0073:00
Control module communication bus off
Illuminate
1
-
U0100:00
Lost communication with PCM
Illuminate
1
-
U0121:00
Lost communication with ABS HU/CM or DSC HU/CM
Illuminate
1
-


DTC Detection Condition

DTC No.

Definition

Detection condition

P0601:00
Flash ROM malfunction
•  Condition: TCM communication normal
•  Status: Detects internal flash ROM malfunction
•  Period: Confirmed 1 time
P0603:00
EEPROM malfunction
•  Condition: TCM communication normal
•  Status: Detects check sum value error
•  Period: Confirmed 1 time
P0604:00
RAM malfunction
•  Condition: TCM communication normal
•  Status: Detects RAM read/write malfunction
•  Period: Confirmed 1 time
P0707:00
TR switch multi-input
•  Condition: TCM normal during engine rotation
•  Status: Detects TR switch multiple input
•  Period: Confirmed 5 times in 2 s or more
P0708:00
TR switch open circuit
•  Condition: TCM normal during engine rotation
•  Status: Detects no output of TR switch at vehicle speed of 30 km/h {19 mph} or higher
•  Period: Confirmed 15 times in 2 s or more
P0711:00
TFT sensor function malfunction
•  Condition: While driving in D range or R position with engine rotating
•  Status: Detects no change in CVT fluid temperature status
•  Period: Confirmed 1 time continuously for 10 min or more
P0712:00
TFT sensor short to GND
•  Condition: TCM normal during engine rotation
•  Status: Detects short to GND in oil temperature sensor system
•  Period: Confirmed 30 times in 10 s or more
P0713:00
TFT sensor open circuit, power supply short circuit
•  Condition: TCM communication normal while engine rotates in warm-up condition
•  Status: Detects open or short circuit in TFT sensor system
•  Period: Confirmed 12 times in 1 s or more
P0715:00
Input/turbine speed sensor signal malfunction
•  Condition: TCM normal during engine rotation
•  Status: AD value not within specification
•  Period: Confirmed 300 times
P0717:00
Input/turbine speed sensor signal not input
•  Condition: TCM normal during engine rotation
•  Status: input/turbine speed sensor signal not input during secondary pulley speed sensor 6-pulse detection
•  Period: Confirmed 500 times
P0720:00
Secondary pulley speed sensor signal malfunction
•  Condition: TCM normal during engine rotation
•  Status: AD value not within specification
•  Period: Confirmed 300 times
P0722:00
Secondary pulley speed sensor signal not input
•  Condition: TCM normal during engine rotation
•  Status: secondary pulley speed sensor signal not input during input/turbine speed sensor 30-pulse detection
•  Period: Confirmed 500 times
P072A:00
Neutral control engagement malfunction
•  Condition: Engine rotating while in D range
•  Status: After engagement control implemented, no engagement detected even after specified time or more has elapsed
•  Period: Confirmed continuously for 2 s
P072C:00
Down shift malfunction, up shift disabled
•  Condition: During constant driving with accelerator opening angle at 20% or more and vehicle speed of 15 km/h {9.3 mph} or more
•  Status: Detects no acceleration to target engine speed during acceleration
•  Period: Confirmed continuously for 4 s
P073C:00
Up shift malfunction, down shift disabled
•  Condition: During constant driving with accelerator opening angle at 20% or more and vehicle speed of 15 km/h {9.3 mph} or more
•  Status: Detects no deceleration to target engine speed during deceleration
•  Period: Confirmed continuously for 4 s
P0740:00
TCC solenoid short to GND
•  Condition: TCC solenoid signal not operating while TCM is normal
•  Status: Detects open or short circuit in TCC signal solenoid system
•  Period: Confirmed 1 time in 0.5 s or more
P0741:00
Neutral control release malfunction
•  Condition: Engine rotating while in D range
•  Status: If specified time or more has elapsed after release control implemented. Or input engine speed of 100 rpm or less is detected after difference of 100 rpm or less is detected between target input engine and actual input engine speed
•  Period: Confirmed continuously for 500 ms
P0742:00
Clutch slippage
•  Condition: TCC is off while engine is rotating in D range
•  Status: Detects forward clutch, reverse brake slippage
•  Period: Confirmed continuously for 200 ms
P0743:00
TCC solenoid short to GND
•  Condition: TCC solenoid signal not operating while TCM is normal
•  Status: Detects short to GND in TCC solenoid system
•  Period: Confirmed 1 time in 0.5 s or more
P0793:00
Primary pulley speed sensor signal not input
•  Condition: TCM normal during engine rotation
•  Status: Primary pulley speed sensor signal not input during secondary pulley speed sensor 4-pulse detection
•  Period: Confirmed 500 times
P0819:00
M range switch/up switch/down switch circuit malfunction (open circuit/short circuit)
•  Condition: TCM communication normal
•  Status: Continuously detects that the M range switch is ON for a 2.5 s period while the selector lever is in the P, R or N position.
Continuously detects that the up switch is ON or the down switch is ON while the M range switch is ON.
•  Period: Confirmed 1 time
P0841:00
Oil pressure sensor function malfunction
•  Condition: Warm-up completed while engine speed is 1,500 rpm or more
•  Status: Detects no change in oil pressure
•  Period: Confirmation by detection every 5,000 ms
P0842:00
Oil pressure sensor signal circuit short to GND
•  Condition: TCM normal during engine rotation
•  Status: Detects short circuit in signal circuit
•  Period: Confirmed 100 times in 0.1 s or more
P0843:00
Oil pressure sensor power supply circuit short to GND, power supply short circuit
•  Condition: TCM normal during engine rotation
•  Status: Open or short circuit detected in power supply circuit
•  Period: Confirmed 100 times in 0.1 s or more
P0864:00
Grade sensor function malfunction
•  Condition: TCM normal during engine rotation
•  Status: Detects no change in slope sensor value during deceleration
•  Period: Confirmed 16 times
P0865:00
Grade sensor signal circuit short to GND, open circuit, power supply short circuit
•  Condition: TCM normal during engine rotation
•  Status: Detects GND short or open circuit in signal circuit
Detects short circuit in signal circuit and power supply
•  Period: Confirmed 5 times continuously for 2 s or more
P0866:00
Grade sensor power supply circuit short to GND, power supply short circuit
•  Condition: TCM normal during engine rotation
•  Status: Detects GND short in power supply circuit Detects short circuit in power supply circuit and power supply
•  Period: Confirmed 100 times continuously for 0.1 s or more
P0882:00
Battery voltage low
•  Condition: TCM communication normal while engine is idling
•  Status: Detects terminal VB current of 9.05 V or less
•  Period: Confirmed 20 times continuously for 1 s or more
P0883:00
Battery voltage high
•  Condition: TCM communication normal while engine is idling
•  Status: Detects terminal B voltage of 18.00 V or higher
•  Period: Confirmed 20 times continuously for 1 s or more
P0973:00
Shift control solenoid No. 1 short to GND
•  Condition: During signal output from shift control solenoid No.1 while TCM is normal
•  Status: Detects short to ground in shift control solenoid No.1
•  Period: Confirmed 1 time in 0.63 s or more
P0974:00
Shift control solenoid No. 1 open circuit, power supply short circuit
•  Condition: During no signal output from shift control solenoid No.1 while TCM is normal
•  Status: Detects open or short circuit in shift control solenoid No.1
•  Period: Confirmed 1 time in 0.5 s or more
P0976:00
Shift control solenoid No. 2 short to GND
•  Condition: During signal output from shift control solenoid No.2 while TCM is normal
•  Status: Detects short to ground in shift control solenoid No.2
•  Period: Confirmed 1 time in 0.63 s or more
P0977:00
Shift control solenoid No. 2 open circuit, power supply short circuit
•  Condition: During no signal output from shift control solenoid No.2 while TCM is normal
•  Status: Detects open or short circuit in shift control solenoid No.2
•  Period: Confirmed 1 time in 0.5 s or more
P2714:00
Belt grip pressure malfunction
•  Condition: No change in accelerator opening angle while engine is rotating
•  Status: Detects oil pressure sensor value as higher than target oil pressure
•  Period: Confirmed 3 s continuously
P2719:00
Belt grip pressure linear solenoid stuck
•  Condition: TCM communication normal
•  Status: Detects feedback current in relation to electrical current command value of belt grip pressure linear solenoid as incorrect
•  Period: Confirmed 2 times continuously
P2720:00
Belt grip pressure linear solenoid short to GND
•  Condition: TCM communication normal
•  Status: Detects open or short circuit in belt grip pressure linear solenoid system
•  Period: Confirmed 1 time in 0.5 s or more
P2721:00
Belt grip pressure linear solenoid open circuit, power supply short circuit
•  Condition: TCM communication normal
•  Status: Detects open or short circuit in belt grip pressure linear solenoid system
•  Period: Confirmed 1 time in 0.5 s or more
P2757:00
Stuck in TCC OFF
•  Condition: TCC is on while engine is rotating in D range
•  Status: Detects difference of 2,000 rpm or more between engine speed during 1 s and input/turbine speed sensor rotation
•  Period: Confirmed 1 time
P2758:00
Stuck in TCC ON
•  Condition: TCC is off while engine is rotating in D range
•  Status: Absolute value is calculated for difference between engine speed every 0.131 s for 4 times continuously, and engine speed detected by input speed sensor, and detects condition whereby total is 100 rpm or less
•  Period: Confirmed 1 time
P2763:00
TCC engage solenoid open circuit, power supply short circuit
•  Condition: During no signal output from TCC engage solenoid while TCM is normal
•  Status: Detects open or short circuit in TCC engage solenoid
•  Period: Confirmed 1 time in 0.5 s or more
P2764:00
TCC engage solenoid short to GND
•  Condition: During signal output from TCC engage solenoid while TCM is normal
•  Status: Detects short to GND in TCC engage solenoid
•  Period: Confirmed 1 time in 0.63 s or more
U0073:00
Control module communication bus off
•  Condition: —
•  Status: Detects CAN Bus Off malfunction
•  Period: After CAN controller reset, confirmed by re-detection
U0100:00
Lost communication with PCM
•  Condition: TCM communication normal
•  Status: Detects communication error with PCM
•  Period: Detects communication time-out
U0121:00
Lost communication with ABS HU/CM
•  Condition: TCM communication normal
•  Status: Detects communication error at ABS HU/CM
•  Period: Detects communication time-out


Drive Cycle

•  The drive cycle is the period from the time the engine is started to being stopped. One drive cycle indicates the period from the time the engine is started and stopped one time. If this period is repeated twice it then becomes 2 drive cycles.
am3zzn00002896
•  The drive cycles are the DTC and pending code recording/clearing, and the AT warning light illumination on/off conditions.

Pending Code

•  The pending code is a temporary DTC detected.
•  If the malfunction is repaired after being detected and the engine is started, the pending code is cleared.

Snap Shot Data

•  The snap shot data stores the currently detected DTC data.
•  The recording timing for the snap shot data differs depending on the number of DTC drive cycles.
―  For a DTC with a drive cycle number 1, only the malfunction determination data is recorded.
―  For a DTC with a drive cycle number 2, both the malfunction determination and undetermined data is recorded.

Snapshot data table

Snapshot data item

Unit

Definition

Corresponding PID data monitor item

ECT
°C {°F}
Engine coolant temperature
ECT
RPM
RPM
Engine speed
RPM
VSS
KPH {MPH}
Vehicle speed
VSS
TPOP
%
Throttle valve position No.1
THOP
ENG_TORQ
N·m {kgf·cm, in·lbf}
Engine torque
ENG_TORQ
