MANUAL TRANSAXLE POWER FLOW [J65M-R]

id0515c1100900

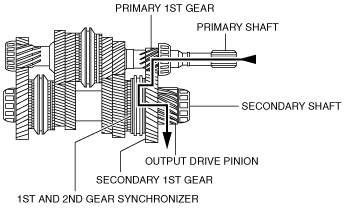

1st Gear

am3zzn00002067

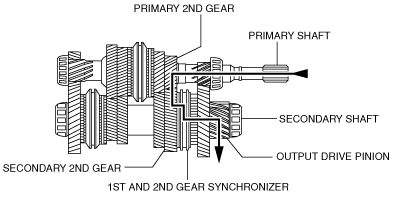

2nd Gear

am3zzn00002068

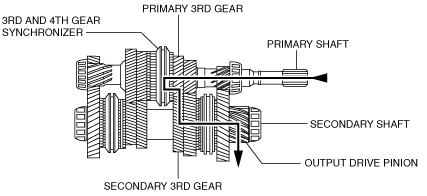

3rd Gear

am3zzn00002069

4th Gear

am3zzn00002070

5th Gear

am3zzn00002071

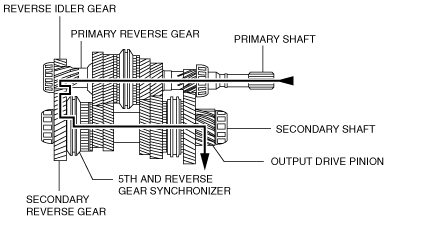

Reverse Gear

am3zzn00002072
