SHIFT INTERLOCK MECHANISM STRUCTURE [J65M-R]


id0515c1101500

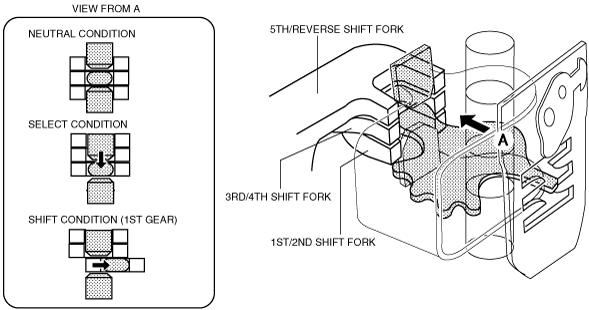

Structure

am3zzn00002076

Function

•  The shift interlock mechanism and the shift and selector finger are mounted on a sleeve in the shift mechanism housing and keep the selected gear engaged with the aid of a spring-loaded ball until another gear is selected.

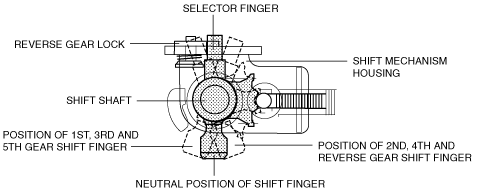

The shift interlock mechanism has three positions.
am3zzn00002077
