SHIFT INTERLOCK MECHANISM OPERATION [G66M-R]

id0515k1101400

Structure

• During shifting, the shift rods, except for the one in operation, are locked in the neutral position by the interlock sleeve.

Neutral condition

• The interlock sleeve fits into the notches of the 1st/2nd, 5th/6th and reverse shift forks.

• The control lever fits into the notch of the 3rd/4th shift fork.

am6zzn00000282

Select condition

• The shift lever is moved laterally to the 1st/2nd position.

• Both the control lever and the interlock sleeve turn in the direct shown by the arrow.

• The control lever fits into the notch of the 1st/2nd shift fork.

• The interlock sleeve fits into the notches of the 3rd/4th, 5th/6th and reverse shift forks.

am6zzn00000283

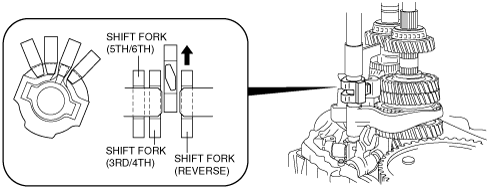

Shift condition

• The shift lever is moved vertically to the 2nd position.

• The control lever moves up the 1st/2nd shift fork and the change to 2nd gear is complete.

• The interlock sleeve holds the 3rd/4th, 5th/6th and reverse shift forks at the neutral position, preventing double engagement of gears.

• The operation procedure is the same for other gear positions.

am6zzn00000284
