TRANSAXLE RANGE (TR) SWITCH INSPECTION [FN4A-EL]
id051701291800
-
Caution
-
• Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.
Operation Inspection
1. Perform the following procedures to inspect the TR switch.
-
- (1) Verify that the starter operates only when the ignition is switched to START with the selector lever in P or N position.
- (2) Verify that the back-up lights illuminate when selected to R position with the ignition at ON.
- (3) Verify that the positions of the selector lever and the selector indicator light are aligned.
On-Vehicle Inspection
1. Perform the following procedures.
- (1) Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [ZY, Z6].)
- (2) Disconnect the negative battery cable.
- (3) Disconnect the TR switch connector.
-

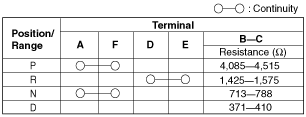

2. Inspect continuity as indicated in the table.
-
