AUTOMATIC TRANSAXLE OUTLINE OF OPERATION [FS5A-EL]


id051721281000

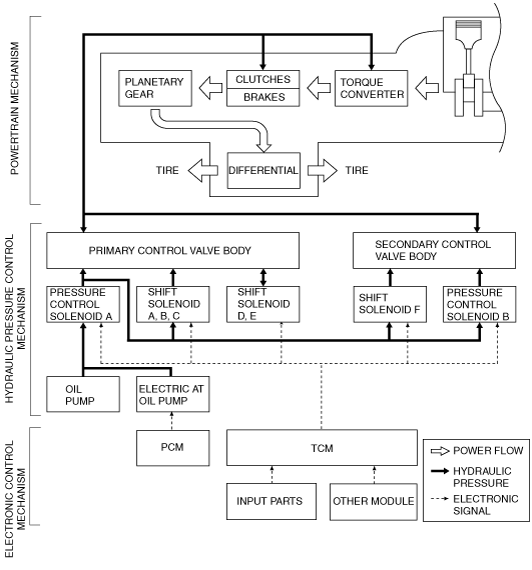

•  The operation of the EC-AT is classified into three systems: the powertrain mechanism (includes the torque converter mechanism), the hydraulic pressure control mechanism, and the electronic control mechanism.
am3zzn00003154
