POWERTRAIN SYSTEM OUTLINE [FS5A-EL]

id051721281200

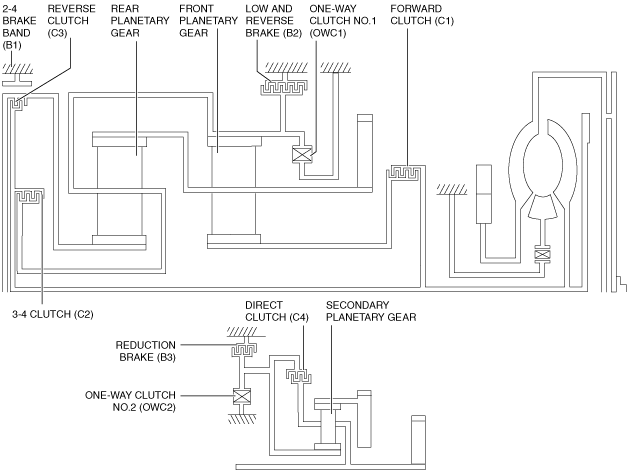

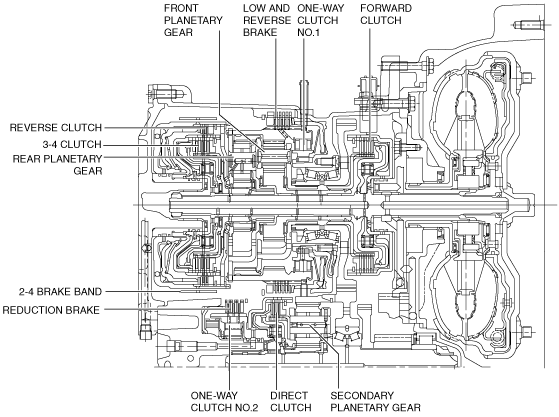

• The powertrain mechanism consists of four pairs of clutches, band brake, two pairs of brakes, two pairs of one-way clutches, and three pairs of single type planetary gears.

Component

Function

Clutch

Forward clutch

C1

•  Transmits the input torque from the turbine shaft to the front sun gear.

3-4 clutch

C2

•  Transmits the input torque from the turbine shaft to the rear planetary carrier.

Reverse clutch

C3

•  Transmits the input torque from the turbine shaft to the rear sun gear.

Direct clutch

C4

•  Engage the secondary planetary carrier and the secondary sun gear.

Band brake

2-4 brake band

B1

•  Locks rotation of the reverse drum and fixes the rear sun gear.

Brake

Low and reverse brake

B2

•  Fixes the rotation of the front internal gear.

Reduction brake

B3

•  Fixes the rotation of the secondary sun gear.

One-way clutch

One-way clutch No.1

OWC1

•  Locks the counterclockwise rotation of the front internal gear.
(Directions of rotation is viewed from the torque converter.)

One-way clutch No.2

OWC2

•  Locks the counterclockwise rotation of the secondary sun gear.
(Directions of rotation is viewed from the torque converter.)

Single type planetary gear

Front planetary gear

—

•  Converts the transmitted driving force of the turbine shaft and transmits it to the primary gear

Rear planetary gear

—

•  Converts the transmitted driving force of the turbine shaft and transmits it to the primary gear

Secondary planetary gear

—

•  Converts the transmitted driving force of the turbine shaft and transmits it to the output gear

Component	Function
Clutch	Forward clutch	C1	• Transmits the input torque from the turbine shaft to the front sun gear.
3-4 clutch	C2	• Transmits the input torque from the turbine shaft to the rear planetary carrier.
Reverse clutch	C3	• Transmits the input torque from the turbine shaft to the rear sun gear.
Direct clutch	C4	• Engage the secondary planetary carrier and the secondary sun gear.
Band brake	2-4 brake band	B1	• Locks rotation of the reverse drum and fixes the rear sun gear.
Brake	Low and reverse brake	B2	• Fixes the rotation of the front internal gear.
Reduction brake	B3	• Fixes the rotation of the secondary sun gear.
One-way clutch	One-way clutch No.1	OWC1	• Locks the counterclockwise rotation of the front internal gear. (Directions of rotation is viewed from the torque converter.)
One-way clutch No.2	OWC2	• Locks the counterclockwise rotation of the secondary sun gear. (Directions of rotation is viewed from the torque converter.)
Single type planetary gear	Front planetary gear	—	• Converts the transmitted driving force of the turbine shaft and transmits it to the primary gear
Rear planetary gear	—	• Converts the transmitted driving force of the turbine shaft and transmits it to the primary gear
Secondary planetary gear	—	• Converts the transmitted driving force of the turbine shaft and transmits it to the output gear

am6xun00000139

am6xun00000140
