CONTROL VALVE BODY OUTLINE [FS5A-EL]
id051721282000
Features
• Two types of control valve body have been adopted.
-
― Primary control valve body
― Secondary control valve body
• Because the clutch engagement pressure is controlled electronically, the hydraulic circuits are simplified, the valve types are reduced, and the control valve body is miniaturized.
• The nonwoven fabric oil strainer is installed in the control valve body to prevent contamination.
Primary Control Valve Body
• The primary control valve body is composed of three bodies.
-
― Upper control valve body
― Main control valve body
― Solenoid control valve body

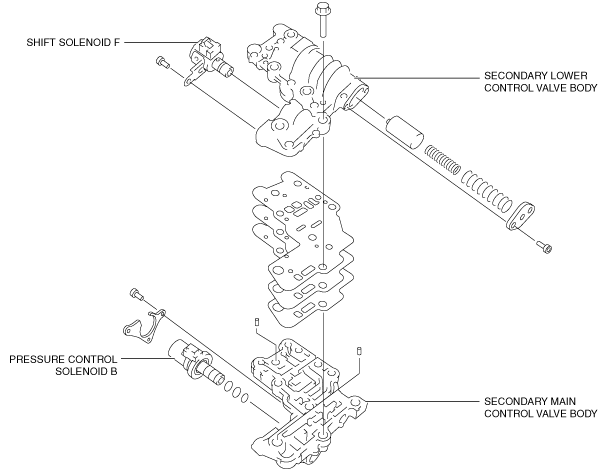

Secondary Control Valve Body
• The secondary control valve body is composed of two bodies.
-
― Secondary main control valve body
― Secondary lower control valve body
