COOLING SYSTEM OUTLINE [FS5A-EL]

id051721282200

• The oil cooler cools the heated ATF in the transaxle.

Type A

• A water-cooled oil cooler has been adopted.

am3zzn00003155

Type B

• A water-cooled oil cooler and an air-cooled oil cooler have been adopted.

am3zzn00003156

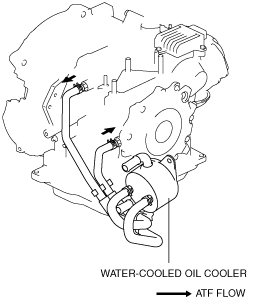

Type C

• A water-cooled oil cooler has been adopted.

am3zzn00003157
