DIRECT ELECTRIC SHIFT CONTROL FUNCTION [FS5A-EL]
id051721287500
Features
• The TCM determines the optimum clutch engagement pressure and drives the solenoid valves based on input signals in accordance with the vehicle driving conditions including the engine torque.
• By driving the solenoid valves, and performing the electronic control of the clutch engagement pressure directly through the TCM, minute hydraulic control, which could not be obtained by the clutch engagement pressure control with the accumulator, is obtained.

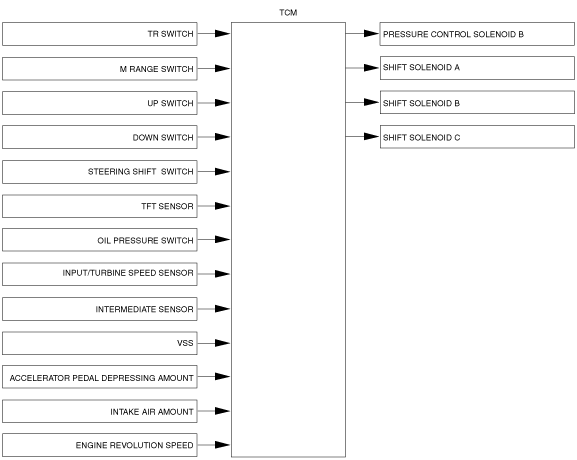

Block Diagram
