STEERING SHIFT SWITCH INSPECTION [FS5A-EL]

id051721291600

1.  Disconnect the steering switch connector. (See STEERING SWITCH REMOVAL/INSTALLATION.)

2.  Inspect the continuity/resistance between the steering switch terminals J and P.

am3zzw00009710

Item

Test condition

Continuity/Resistance (ohm)

Inspection Items
LH up switch
LH up switch released
No continuity
•  Steering shift switch (LH)
•  Related harness
LH up switch depressed
353—367
RH up switch
RH up switch released
No continuity
•  Steering shift switch (RH)
•  Related harness
RH up switch depressed
353—367
LH down switch
LH down switch released
No continuity
•  Steering shift switch (LH)
•  Related harness
LH down switch depressed
608—632
RH down switch
RH down switch released
No continuity
•  Steering shift switch (RH)
•  Related harness
RH down switch depressed
608—632


Steering Shift Switch (LH) Inspection

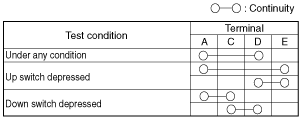

1.  Inspect the continuity as indicated in the table.

am3zzw00009711

am3zzw00009724
•  If there is any malfunction, replace the steering shift switch (LH). (See STEERING SWITCH REMOVAL/INSTALLATION.)


Steering Shift Switch (RH) Inspection

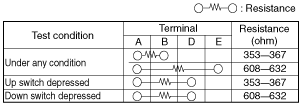

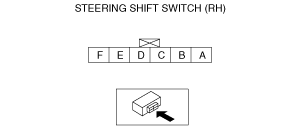

1.  Inspect the resistance as indicated in the table.

am3zzw00009712

am3zzw00009725
•  If there is any malfunction, replace the steering shift switch (RH). (See STEERING SWITCH REMOVAL/INSTALLATION.)
