SHIFT-LOCK SYSTEM FUNCTION


id051800296400

•  The shift-lock system prevents the selector lever from being shifted out of Park unless the brake pedal is depressed when the ignition switch is turned to the ACC or ON position.
•  The shift-lock can be released manually by inserting a flathead screwdriver into the shift-lock release hole.
•  Mainly consists of the shift-lock solenoid, brake switch, and P position switch.

Wiring Diagram

am3uun00000501

Structural View

L.H.D.

am3uun00000502

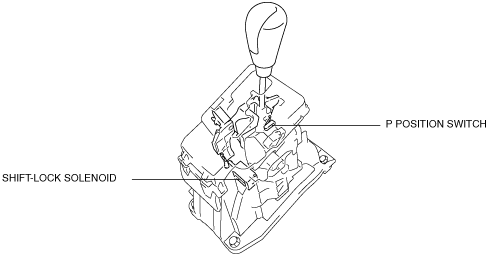

R.H.D.

am3zzn00001847
