KEY INTERLOCK SYSTEM FUNCTION


id051800296600

•  The key interlock system allows the key to be turned to the LOCK position only when the selector lever is in the P position.
•  Mainly consists of the key interlock solenoid and NOT P position switch.

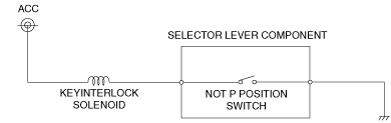

Wiring Diagram

am3uun00000503

Structural View

L.H.D.

am3uun00000504

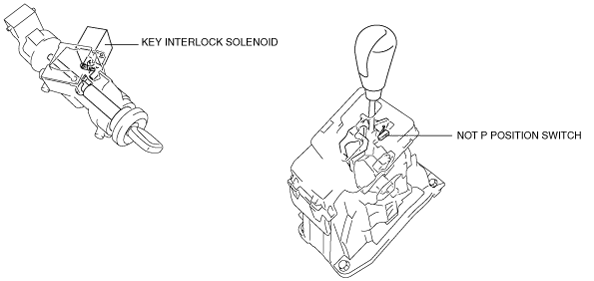

R.H.D.

am3zzn00001851
