POWERTRAIN SYSTEM OPERATION [DJVA-EL]
id051901280400
P, N position
|
Forward/reverse switching mechanism function |
Solenoid valve function |
Primary pulley pressure |
||
|---|---|---|---|---|
|
Forward clutch |
Reverse brake |
Shift control solenoid No.1 |
Shift control solenoid No.2 |
|
|
Release
|
Release
|
OFF
|
OFF
|
Constant pressure
|
am3zzn00002938
|
am3zzn00002904
|

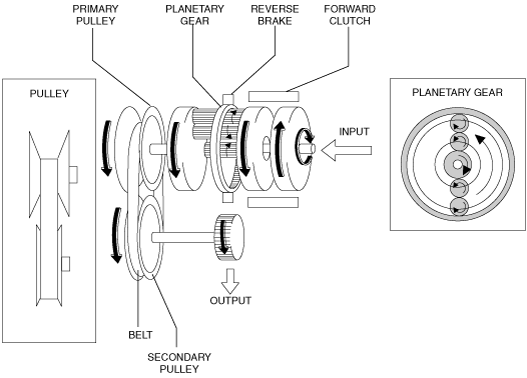

R position
|
Forward/reverse switching mechanism function |
Solenoid valve function |
Primary pulley pressure |
||
|---|---|---|---|---|
|
Forward clutch |
Reverse brake |
Shift control solenoid No.1 |
Shift control solenoid No.2 |
|
|
Release
|
Engage
|
OFF
|
Duty control
|
Low pressure
|
am3zzn00002939
|
am3zzn00002905
|
D range (minimum speed variation ratio)
|
Forward/reverse switching mechanism function |
Solenoid valve function |
Primary pulley pressure |
||
|---|---|---|---|---|
|
Forward clutch |
Reverse brake |
Shift control solenoid No.1 |
Shift control solenoid No.2 |
|
|
Engage
|
Release
|
OFF
|
Duty control
|
Low pressure
|
am3zzn00002940
|
am3zzn00002906
|

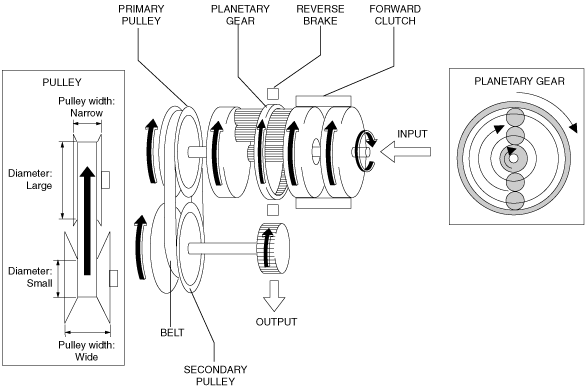

D range (maximum speed variation ratio)
|
Forward/reverse switching mechanism function |
Solenoid valve function |
Primary pulley pressure |
||
|---|---|---|---|---|
|
Forward clutch |
Reverse brake |
Shift control solenoid No.1 |
Shift control solenoid No.2 |
|
|
Engage
|
Release
|
Duty control
|
OFF
|
High pressure
|
am3zzn00002941
|
am3zzn00002907
|
