TORQUE CONVERTER OUTLINE [DJVA-EL]


id051901280500

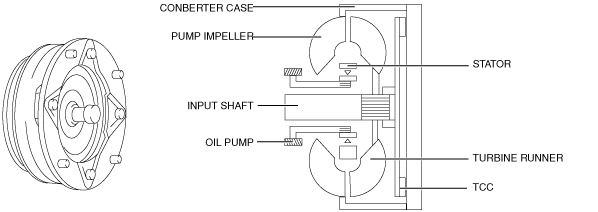

•  The torque converter consists mainly of the pump impeller, turbine runner, starter, and TCC.
•  The torque converter transmits and amplifies torque by producing a current from the CVT fluid charge in the torque converter.
•  The engine and CVT are engaged by the operation of the TCC which improves fuel economy by enhancing the transmission efficiency.
am3zzn00002942
