TRANSAXLE RANGE (TR) SWITCH CONSTRUCTION/OPERATION [DJVA-EL]
id051901281700
• The TR switch is connected to the manual shaft and installed to the transaxle case.

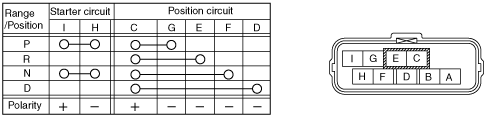

• The multi-position-type inhibitor switch changes the internal circuit combination according to the selector lever position.
