•  The input speed sensor is installed to the transaxle case having clearance with the forward clutch drum.

am3zzn00002959

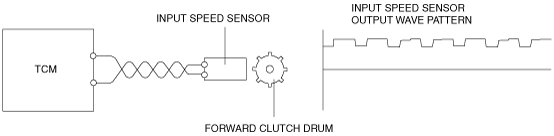

•  For every 1 rotation of the forward clutch drum, a 24-pulse signal waveform of the input speed sensor is output.

am3zzn00002960
