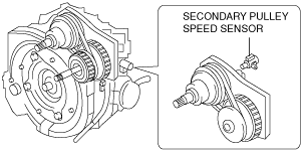

•  The secondary pulley speed sensor is installed to the transaxle case having clearance with the parking lock gear of the secondary pulley.

am3zzn00002963

•  For every 1 rotation of the parking lock gear, a 13-pulse signal waveform of the secondary pulley speed sensor is output.

am3zzn00002964
