KEY INTERLOCK SYSTEM FUNCTION


id052000000400

•  The key interlock system allows the key to be turned to the LOCK position only when the selector lever is in the P position.
•  Mainly consists of the key interlock solenoid and P position switch.

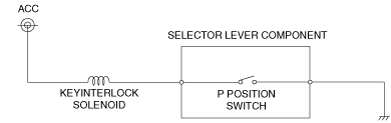

Wiring Diagram

am3zzn00003019

Structural View

am3zzn00003020
