STEERING GEAR AND LINKAGE CONSTRUCTION


id061400100600

•  A size and weight reduced rack and pinion system steering gear has been adopted.
•  Heightened support rigidity has been achieved due to the integration of the steering gear mounts (three locations) and gear housing, improving response and steering stability.

L.H.D.

am3uun00000898

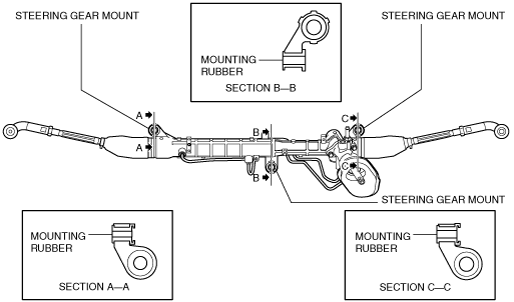

R.H.D.

am3zzn00001853
