REFRIGERANT LINE CONSTRUCTION

id071100100700


Construction

•  The pipes in the refrigerant lines are made of aluminum alloy and the hoses are made of rubber (flexible hose).
•  A high-pressure charging valve is located on the cooler hose (HI) and a low-pressure charging valve is located on the cooler hose (LO).

L5

am3zzn00002470

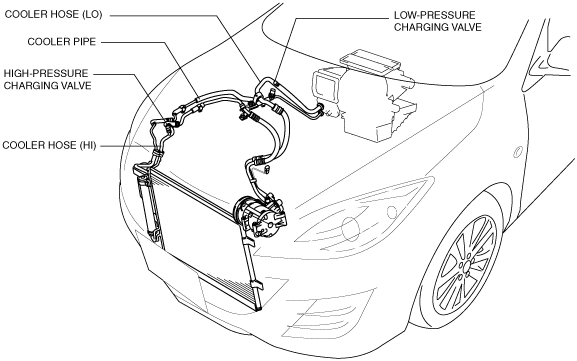

LF, MZR 2.0 DISI i-stop

am3zzn00002288

Z6, ZY

am3zzn00002879

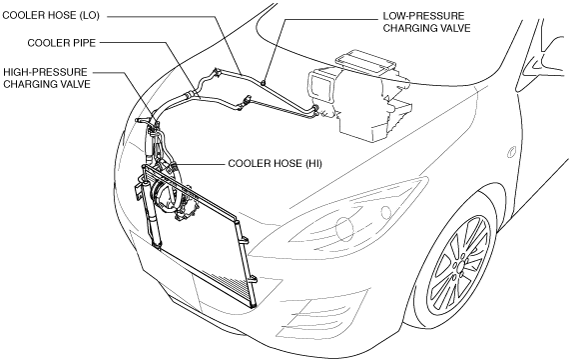

MZ-CD 1.6 (Y6)

am3zzn00002290

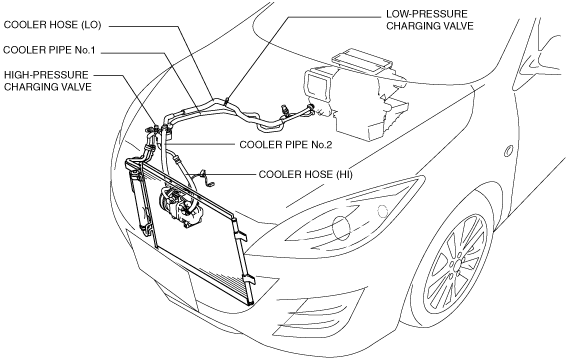

MZR-CD 2.2

am3zzn00002291

L3 Turbo

am3zzn00002880
