CABIN TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER]

id0740a1807700

1.  Measure the temperature around the cabin temperature sensor and measure the resistance between cabin temperature sensor terminals B and D.

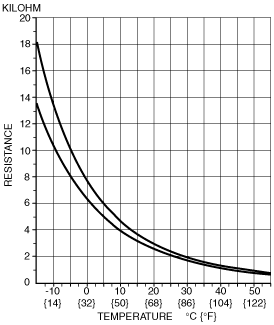

•  If the characteristics of the cabin temperature sensor are not as shown in the graph, replace the cabin temperature sensor.

am3uuw00004053

2.  Connect battery positive voltage to cabin temperature sensor terminal A and connect terminal C to ground to verify fan operation.

•  If there is any malfunction, replace the cabin temperature sensor.

am3uuw00004054
