CLIMATE CONTROL UNIT CONSTRUCTION [MANUAL AIR CONDITIONER]


id0740a2100900

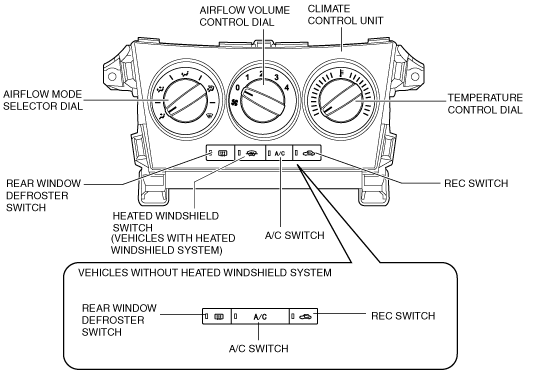

•  A semi logic type climate control unit is used with the manual air conditioner.
•  The airflow mode selector dial, temperature control dial, and airflow volume control dial have been enlarged to improve ease of operation.
am3zzn00002481
