MAGNETIC CLUTCH INSPECTION [MANUAL AIR CONDITIONER]

id0740a2800600

Except MZ-CD 1.6 (Y6)

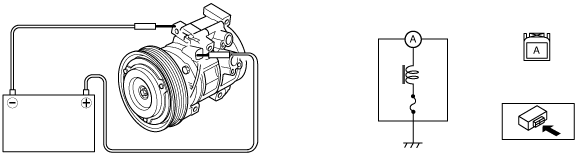

1.  Connect battery to terminal A of magnetic clutch and ground to A/C compressor body.

L5

am3uuw00004030

LF

am3zzw00007367

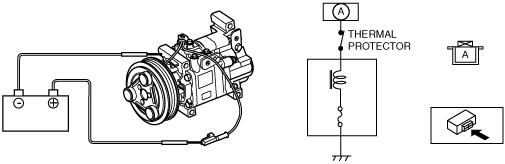

Z6, ZY

am3zzw00006723

MZR-CD 2.2

am3zzw00006725

2.  Verify that the magnetic clutch operates.

•  If there is any malfunction, replace the magnetic clutch.

MZ-CD 1.6 (Y6)

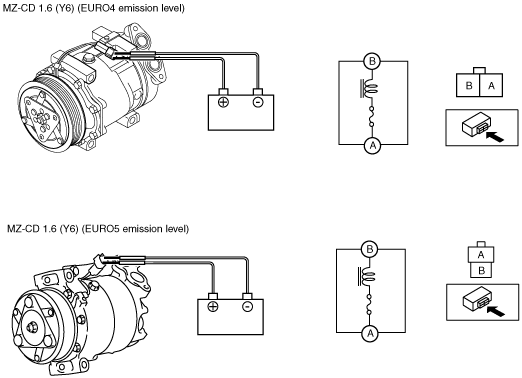

1.  Connect battery to terminal A of magnetic clutch and ground to terminal B of magnetic clutch.

am3zzw00009731

2.  Verify that the magnetic clutch operates.

•  If there is any malfunction, replace the magnetic clutch.
