CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER]

id0740a2802000

1.  Disassemble in the order indicated in the figure.

am3uuw00004091

1	Dial
2	Airflow mode wire (See Wire Removal Note.) (See Wire Installation Note.)
3	Air mix wire (See Wire Removal Note.) (See Wire Installation Note.)
4	Bulb
5	Fan switch
6	Climate control unit

2.  Assemble in the reverse order of disassembly.

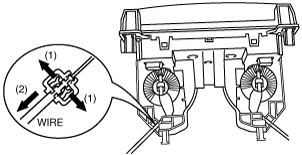

Wire Removal Note

1.  Remove in the order indicated in the figure.

am3uuw00004092

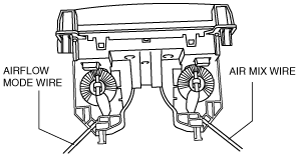

Wire Installation Note

1.  Install as shown in the figure.

am3zzw00008205
