CLOCK SPRING ADJUSTMENT

id081000802100

Note

•  The adjustment procedure is also specified on the caution label of the clock spring.

1.  Set the front wheels straight ahead.

Caution

•  The clock spring will break if over‐wound. Do not forcibly turn the clock spring.

2.  Turn the clock spring clockwise until it stops.

am3uuw00003741

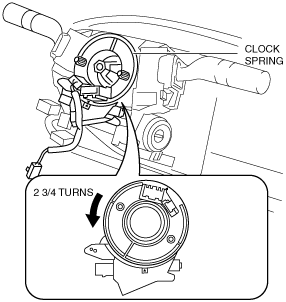

3.  Turn the clock spring counterclockwise 2 3/4 turns.

am3uuw00003742

4.  Align the mark on the clock spring with the mark on the outer housing.

am3uuw00003743
