DTC B1026:92 [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

id09021c396900

Warning
•  If this DTC is detected, the system will enter the fail-safe function to ensure safety. If the vehicle is left as it is for a specified time limit or more, or the ignition is operated a specified number of times or more while the fail-safe function is operating, the ignition will remain stuck in off and it is possible that the engine cannot be started. Therefore, perform the malfunction diagnosis while the engine can be started. In addition, after having performed the malfunction diagnosis, verify that this DTC is not detected with the steering wheel locked. If the DTC is not detected, the system returns to normal from the fail-safe function.
Note

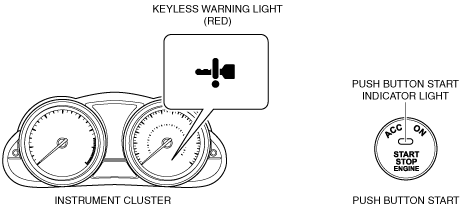

•  When the system enters the fail-safe function, the keyless warning light and the push button start indicator light illuminate as follows:
―  When the clutch pedal (MTX) or the brake pedal (ATX) is depressed while the ignition is switched off, both lights illuminate (red).
―  When the ignition is switched to ACC or ON, both lights illuminate (red) constantly.
am3zzw00006966

DESCRIPTION

Incorrect operation of steering lock unit
DETECTION CONDITION
•  Keyless control module receives the position signal indicating a serious malfunction from steering lock unit.
POSSIBLE CAUSE
•  Steering lock unit malfunction
•  Keyless control module malfunction

Diagnostic Procedure

Step

Inspection

Action
1
INSPECT STEERING LOCK UNIT
•  Inspect the steering lock unit.
•  Is there any malfunction?
Yes
Replace the steering lock unit and perform the steering lock unit programming, then go to the next step.
(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)
(See STEERING LOCK UNIT ID CODE REGISTRATION.)
No
Go to the next step.
2
VERIFY TROUBLESHOOTING COMPLETED
•  Perform the following procedure within 5 min.
1.  Clear the DTC from the keyless control module using the M-MDS.
2.  Switch the ignition to off, then open the door to lock the steering.
3.  Perform the advanced keyless entry and push button start system DTC inspection using the M-MDS.
•  Is the same DTC present?
Yes
Replace the keyless control module, then go to the next step.
(See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION.)
No
Go to the next step.
3
VERIFY THAT NO OTHER DTCs ARE PRESENT
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
(See DTC TABLE [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)
No
DTC troubleshooting completed.
