1
|
INSPECT RAIN SENSOR CONNECTOR AND TERMINALS
• Switch the ignition to off.
• Disconnect the negative battery cable.
• Disconnect the rain sensor connector.
• Inspect the connector for poor connection (such as damaged/pulled-out pins, and corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the connector or terminals, then go to Step 7.
|
|
No
|
Go to the next step.
|
|
2
|
INSPECT AUTO LIGHT/WIPER CONTROL MODULE CONNECTOR AND TERMINALS
• Disconnect the auto light/wiper control module connector.
• Inspect the connector for poor connection (such as damaged/pulled-out pins, and corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the connector or terminals, then go to Step 7.
|
|
No
|
Go to the next step.
|
|
3
|
INSPECT RAIN SENSOR SIGNAL CIRCUIT FOR SHORT TO GROUND
• Rain sensor and auto light/wiper control module connectors are disconnected.
• Inspect for continuity between the rain sensor terminal C (wiring harness-side) and body ground.
• Is there continuity?
|
Yes
|
Repair or replace the wiring harness for a possible short to ground, then go to Step 7.
|
|
No
|
Go to the next step.
|
|
4
|
INSPECT RAIN SENSOR SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY
• Rain sensor and auto light/wiper control module connectors are disconnected.
• Reconnect the negative battery cable.
• Switch the ignition to ON.
• Measure the voltage between the rain sensor terminal C (wiring harness-side) and body ground.
• Is there any voltage?
|
Yes
|
Repair or replace the wiring harness for a possible short to power supply, then go to Step 7.
|
|
No
|
Go to the next step.
|
|
5
|
INSPECT RAIN SENSOR SIGNAL CIRCUIT FOR OPEN CIRCUIT
• Rain sensor and auto light/wiper control module connectors are disconnected.
• Switch the ignition to off.
• Disconnect the negative battery cable.

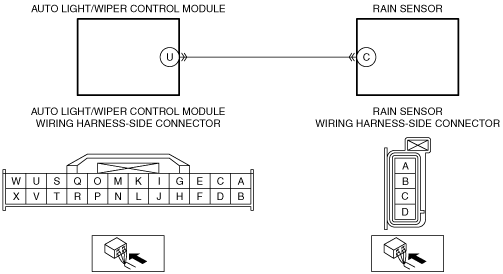

• Inspect for continuity between the rain sensor terminal C (wiring harness-side) and auto light/wiper control module terminal U (wiring harness-side).
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the wiring harness for a possible open circuit, then go to Step 7.
|
|
6
|
VERIFY RAIN SENSOR MALFUNCTION
• Make sure to reconnect all disconnected connectors.
• Reconnect the negative battery cable.
• Clear the DTC using the M-MDS.
• Perform the auto light/wiper control module DTC inspection using the M-MDS.
• Is the same DTC present?
|
Yes
|
Replace the rain sensor, then go to the next step.
|
|
No
|
Go to Step 8.
|
|
7
|
VERIFY TROUBLESHOOTING COMPLETED
• Make sure to reconnect all disconnected connectors.
• Reconnect the negative battery cable.
• Clear the DTC using the M-MDS.
• Perform the auto light/wiper control module DTC inspection using the M-MDS.
• Is the same DTC present?
|
Yes
|
Replace the auto light/wiper control module, then go to the next step.
|
|
No
|
Go to the next step.
|
|
8
|
VERIFY THAT NO OTHER DTCs ARE RECORDED
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
|
|
No
|
DTC troubleshooting completed.
|
