DETERMINING MALFUNCTIONING PART (HS-CAN) [MULTIPLEX COMMUNICATION SYSTEM (L.H.D. (MZR 2.0 DISI i-stop))]
id0902k7846700
1. Verify the CAN system-related module DTCs and the failed module on the M-MDS screen.
2. Refer to “DTC Output Pattern and Malfunctioning Part“ and find the area linked from the malfunctioning part.
3. Inspect the possible cause and inspection item of the applicable malfunctioning part.
4. Perform the DTC inspection after the repair procedure.
DTC Output Pattern and Malfunctioning Part
M-MDS display |
DTC display pattern |
||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DTC output module |
DTC |
||||||||||||||||
PCM
(PCM)
|
U0121:00
|
|
|
|
×
|
×
|
|
|
|
|
|
|
|
|
|
|
|
U0131:00
|
|
×
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
U0140:00
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
U0155:00
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
×
|
|
U0214:00
|
|
|
|
|
|
|
|
|
|
|
|
×
|
|
|
|
|
|
EPS
(EHPAS control module)
|
U0100
|
×
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
U0140
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
U0155
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
×
|
|
U0401
|
-
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
U2023
|
-
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ABS*1
(DSC HU/CM)
|
U0100:00
|
×
|
|
×
|
|
|
|
|
|
|
|
|
|
|
|
|
|
U0140:00
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
U0155:00
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
×
|
|
U0401:00
|
-
|
|
-
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
U0402:00
|
-
|
|
-
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
U0422:00
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
U0428:62
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
U0428:64
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ABS*2
(ABS HU/CM)
|
U0100:00
|
×
|
|
×
|
|
|
|
|
|
|
|
|
|
|
|
|
|
U0155:00
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
×
|
|
GEM
(BCM)
|
U0100:00
|
×
|
|
×
|
|
|
×
|
|
|
|
|
|
|
|
|
|
|
U0121:00
|
|
|
|
×
|
×
|
×
|
|
|
|
|
|
|
|
|
|
|
|
U0151:00
|
|
|
|
|
|
|
|
|
|
×
|
|
|
|
|
|
|
|
U0214:00
|
|
|
|
|
|
|
|
|
|
|
|
×
|
|
|
|
|
|
U0401:68
|
-
|
|
-
|
|
|
-
|
|
|
|
|
|
|
|
|
|
|
|
RVM*3
(Rear vehicle monitoring control module (RH))
|
U0100:00
|
×
|
|
×
|
|
|
×
|
×
|
|
|
|
|
|
|
|
|
|
U0121:00
|
|
|
|
×
|
×
|
×
|
×
|
|
|
|
|
|
|
|
|
|
|
U0140:00
|
|
|
|
|
|
|
×
|
|
|
|
|
|
|
|
|
|
|
U0155:00
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
×
|
|
U0401:68
|
-
|
|
-
|
|
|
-
|
-
|
|
|
|
|
|
|
|
|
|
|
U0415:68
|
|
|
|
-
|
-
|
-
|
-
|
|
|
|
|
|
|
|
|
|
|
RCM
(SAS control module)
|
U0155
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
×
|
RKE*4
(Keyless control module)
|
U0100:00
|
×
|
|
×
|
|
|
×
|
×
|
|
×
|
|
×
|
|
|
|
|
|
U0121:00
|
|
|
|
×
|
×
|
×
|
×
|
|
×
|
|
×
|
|
|
|
|
|
|
AFS*5
(AFS control module)
|
U0100:00
|
×
|
|
×
|
|
|
×
|
×
|
|
×
|
|
×
|
|
×
|
|
|
|
U0140:00
|
|
|
|
|
|
|
×
|
|
×
|
|
×
|
|
×
|
|
|
|
|
IC
(Instrument cluster)
|
U0100:00
|
×
|
|
×
|
|
|
×
|
×
|
|
×
|
|
×
|
|
×
|
|
×
|
|
U0100:87
|
-
|
|
-
|
|
|
-
|
-
|
|
-
|
|
-
|
|
-
|
|
-
|
|
|
U0121:00
|
|
|
|
×
|
×
|
×
|
×
|
|
×
|
|
×
|
|
×
|
|
×
|
|
|
U0131:00
|
|
×
|
×
|
|
|
×
|
×
|
|
×
|
|
×
|
|
×
|
|
×
|
|
|
U0140:00
|
|
|
|
|
|
|
×
|
|
×
|
|
×
|
|
×
|
|
×
|
|
|
U0151:00
|
|
|
|
|
|
|
|
|
|
×
|
×
|
|
×
|
|
×
|
|
|
U0182:00
|
|
|
|
|
|
|
|
|
|
|
|
|
|
×
|
×
|
|
|
U0214:00
|
|
|
|
|
|
|
|
|
|
|
|
×
|
×
|
|
×
|
|
|
U0232:00
|
|
|
|
|
|
|
|
×
|
×
|
|
×
|
|
×
|
|
×
|
|
|
U0401:68
|
-
|
|
-
|
|
|
-
|
-
|
|
-
|
|
-
|
|
-
|
|
-
|
|
|
U0401:92
|
-
|
|
-
|
|
|
-
|
-
|
|
-
|
|
-
|
|
-
|
|
-
|
|
|
U0415:68
|
|
|
|
-
|
-
|
-
|
-
|
|
-
|
|
-
|
|
-
|
|
-
|
|
|
U0415:92
|
|
|
|
-
|
-
|
-
|
-
|
|
-
|
|
-
|
|
-
|
|
-
|
|
|
U0452:92
|
|
|
|
|
|
|
|
|
|
-
|
-
|
|
-
|
|
-
|
|
|
U0483:68
|
|
|
|
|
|
|
|
|
|
|
|
|
|
-
|
-
|
|
|
U0483:92
|
|
|
|
|
|
|
|
|
|
|
|
|
|
-
|
-
|
|
|
U0515:68
|
|
|
|
|
|
|
|
|
|
|
|
-
|
-
|
|
-
|
|
|
U0515:92
|
|
|
|
|
|
|
|
|
|
|
|
-
|
-
|
|
-
|
|
|
U0533:68
|
|
|
|
|
|
|
|
-
|
-
|
|
-
|
|
-
|
|
-
|
|
|
U2005:86
|
-
|
|
-
|
|
|
-
|
-
|
|
-
|
|
-
|
|
-
|
|
-
|
|
|
M-MDS display module
|
“Fail” display pattern
|
||||||||||||||||
PCM
|
×
|
|
×
|
|
|
×
|
×
|
|
×
|
|
×
|
|
×
|
|
×
|
|
|
EPS
|
|
×
|
×
|
|
|
×
|
×
|
|
×
|
|
×
|
|
×
|
|
×
|
|
|
ABS*1
|
|
|
|
×
|
|
×
|
×
|
|
×
|
|
×
|
|
×
|
|
×
|
|
|
ABS*2
|
|
|
|
|
×
|
×
|
×
|
|
×
|
|
×
|
|
×
|
|
×
|
|
|
GEM
|
|
|
|
|
|
|
×
|
|
×
|
|
×
|
|
×
|
|
×
|
|
|
RVM*3
|
|
|
|
|
|
|
|
×
|
×
|
|
×
|
|
×
|
|
×
|
|
|
RCM
|
|
|
|
|
|
|
|
|
|
×
|
×
|
|
×
|
|
×
|
|
|
RKE*4
|
|
|
|
|
|
|
|
|
|
|
|
×
|
×
|
|
×
|
|
|
AFS*5
|
|
|
|
|
|
|
|
|
|
|
|
|
|
×
|
×
|
|
|
IC
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
×
|
A
Possible cause
System wiring diagram

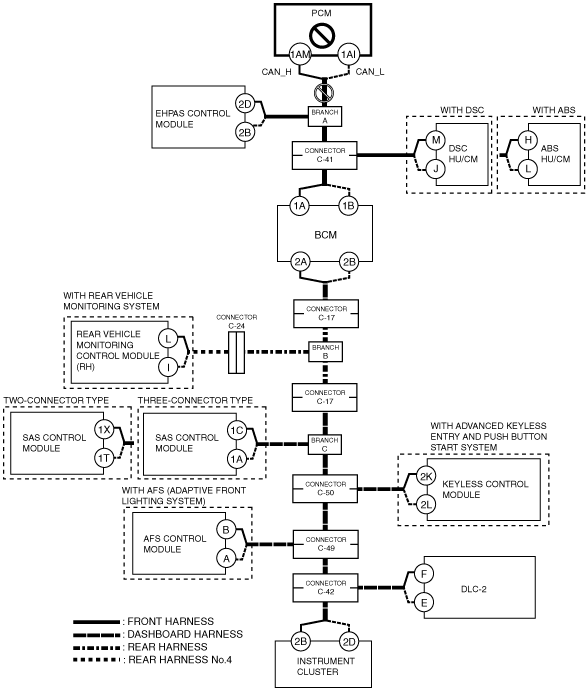

am3zzw00008901
|
Inspection item
B
Possible cause
System wiring diagram

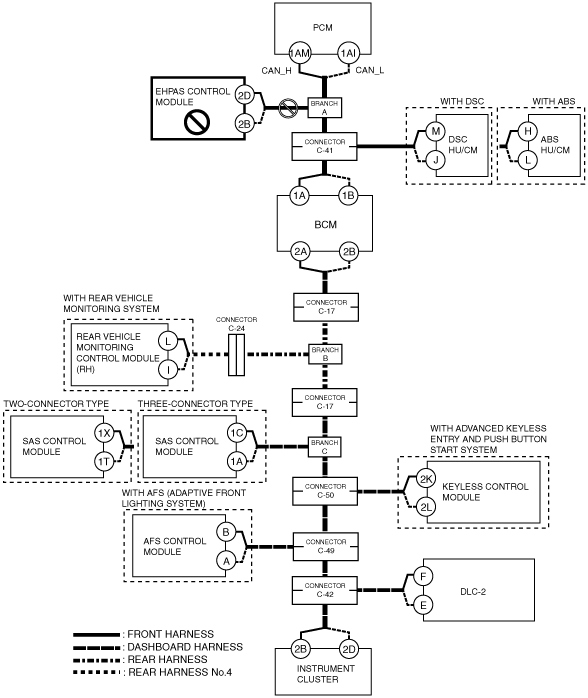

am3zzw00008902
|
Inspection item
C
Possible cause
System wiring diagram

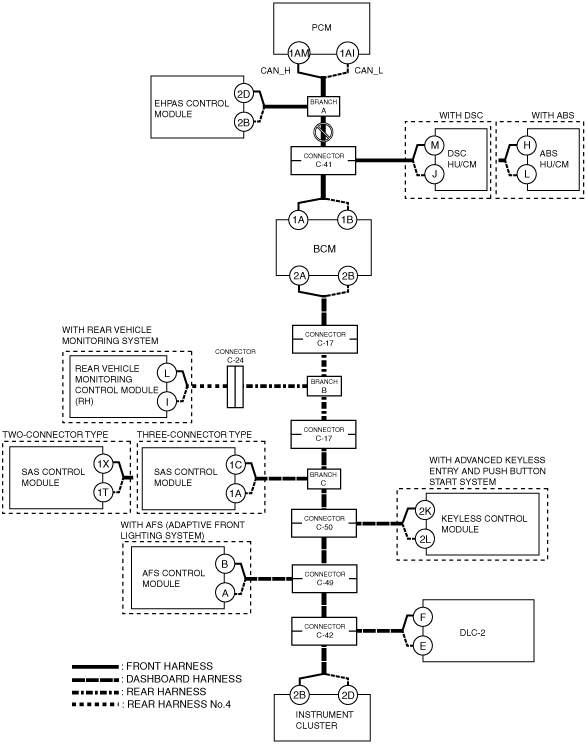

am3zzw00008903
|
Inspection item
D
Possible cause
System wiring diagram

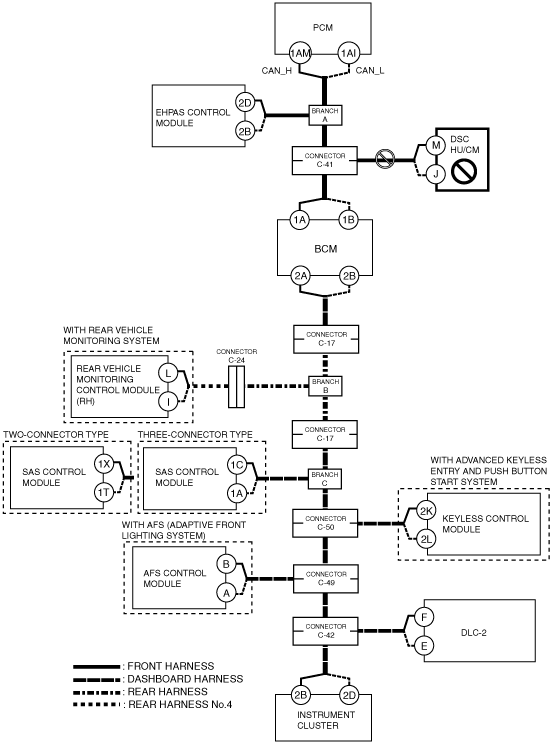

am3zzw00008904
|
Inspection item
E
Possible cause
System wiring diagram
am3zzw00008905
|
Inspection item
F
Possible cause
System wiring diagram
am3zzw00008906
|
Inspection item
G
Possible cause
System wiring diagram

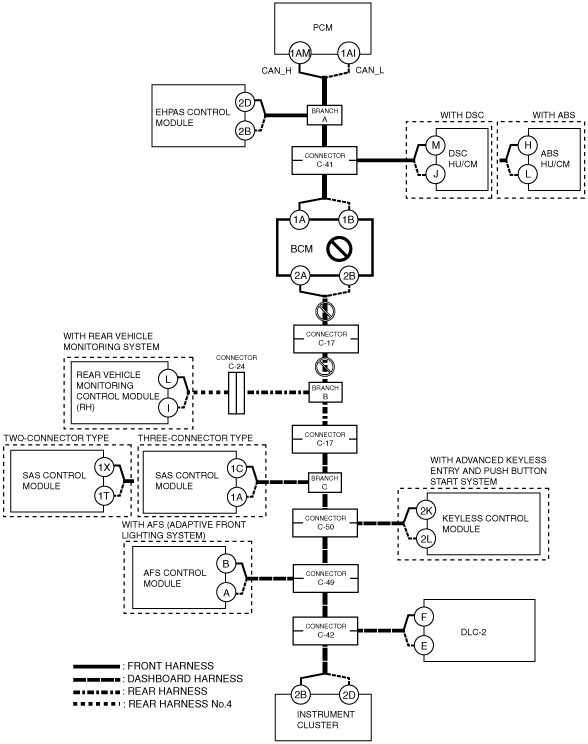

am3zzw00008907
|
Inspection item
H
Possible cause
System wiring diagram

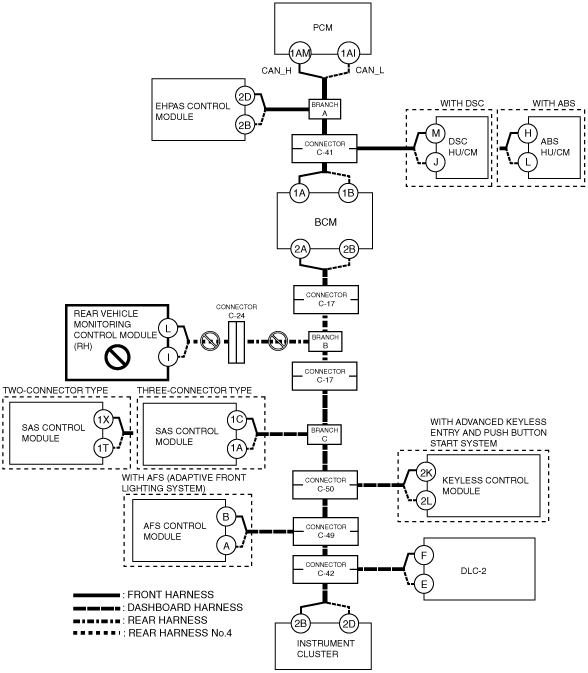

am3zzw00008908
|
Inspection item
I
Possible cause

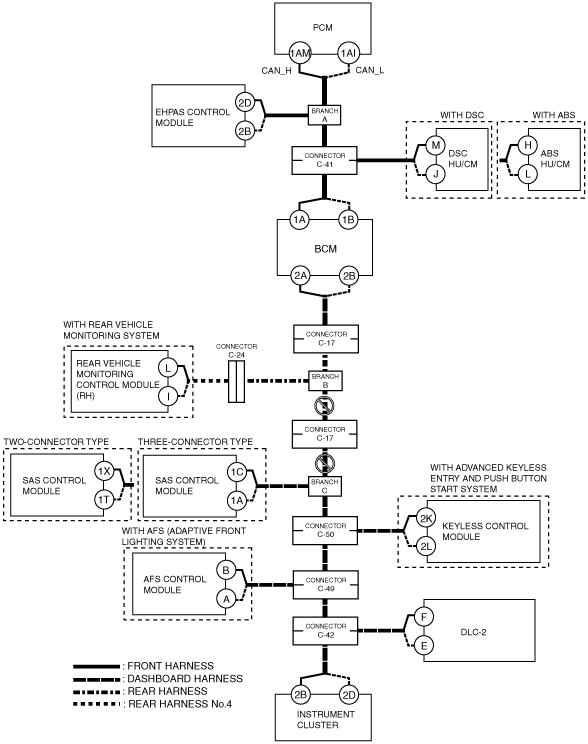

System wiring diagram
am3zzw00008909
|
Inspection item
J
Possible cause
System wiring diagram

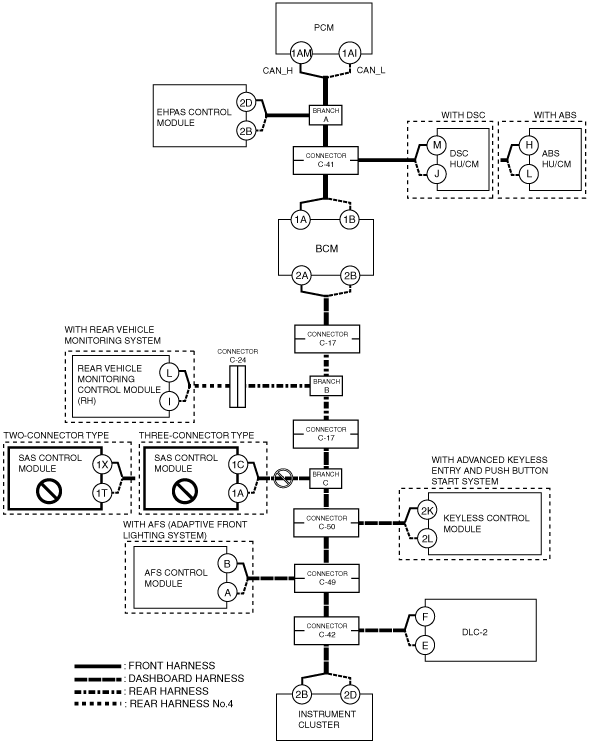

am3zzw00008910
|
Inspection item
K
Possible cause
System wiring diagram

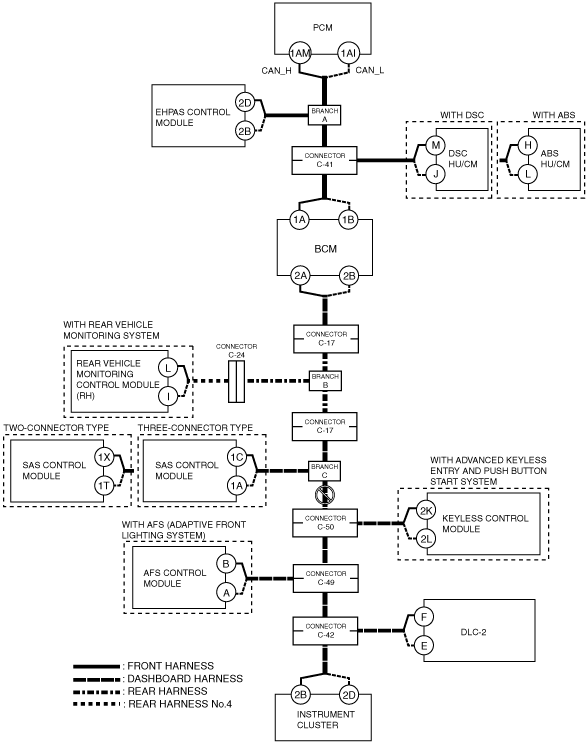

am3zzw00008911
|
Inspection item
L
Possible cause
System wiring diagram
am3zzw00008912
|
Inspection item
M
Possible cause
System wiring diagram
am3zzw00008913
|
Inspection item
N
Possible cause
System wiring diagram
am3zzw00008914
|
Inspection item
O
Possible cause
System wiring diagram
am3zzw00008915
|
Inspection item
P
Possible cause
System wiring diagram
am3zzw00008916
|
Inspection item
