DETERMINING MALFUNCTIONING PART (HS-CAN) [MULTIPLEX COMMUNICATION SYSTEM (R.H.D. (ZY))]

id0902l2846700

Caution

• If the malfunctioning part is detected in the communication line, before disconnecting the related connector for inspection, press the connector in the connection direction to verify that there is no looseness or disconnection.

• When disconnecting the connector, verify that there is no damage, deformation, or corrosion of the connector terminals.

1. Verify the CAN system-related module DTCs and the failed module on the M-MDS screen.

2. Refer to “DTC Output Pattern and Malfunctioning Part” and find the area linked from the malfunctioning part.

Note

• A hyphen (-) in the DTC output pattern cell indicates that the DTC may be displayed depending on the malfunction detection conditions. If it is not displayed, the malfunctioning part can be determined by checking only the crosses (×).

• If any of the following DTCs is displayed alone, perform the applicable DTC inspection. (See DTC TABLE [MULTIPLEX COMMUNICATION SYSTEM (R.H.D. (ZY))].)

― EHPAS control module: U2023

― BCM: U0401:68

― Instrument cluster: U0100:87, U0401:68, U0401:92, U0402:68, U0402:92, U0415:68, U0415:92, U0452:92, U0483:68, U0483:92, U0515:68, U0515:92, U2005:86

3. Inspect the possible cause and inspection item of the applicable malfunctioning part.

4. Perform the DTC inspection after the repair procedure.

• If any DTC is displayed, return to FOREWORD [MULTIPLEX COMMUNICATION SYSTEM (R.H.D. (ZY))].

DTC Output Pattern and Malfunctioning Part

Cross (×): Displayed

Hyphen (-): May or may not be displayed

M-MDS display		DTC display pattern
DTC output module	DTC	A	B	C	D	E	F	G	H	I	J	K	L	M	N
PCM (PCM)	U0121:00				×
	U0131:00		×
	U0155:00														×
EPS (EHPAS control module)	U0100	×
	U0140
	U0155														×
	U2023	-
ABS (ABS HU/CM)	U0100:00	×		×
ABS (ABS HU/CM)	U0155:00														×
TCM (TCM)	U0100:00	×		×		×
TCM (TCM)	U0121:00				×	×
GEM (BCM)	U0100:00	×		×		×		×
	U0101:00						×	×
	U0121:00				×	×		×
	U0151:00									×
	U0214:00													×
	U0401:68	-		-		-		-
RCM (SAS control module)	U0155														×
AFS^*1 (AFS control module)	U0100:00	×		×		×		×	×		×
AFS^*1 (AFS control module)	U0140:00								×		×
RKE^*2 (Keyless control module)	U0100:00	×		×		×		×	×		×		×
	U0101:00						×	×	×		×		×
	U0121:00				×	×		×	×		×		×
IC (Instrument cluster)	U0100:00	×		×		×		×	×		×		×
	U0100:87	-		-		-		-	-		-		-
	U0101:00						×	×	×		×		×
	U0121:00				×	×		×	×		×		×
	U0131:00		×	×		×		×	×		×		×
	U0140:00								×		×		×
	U0151:00									×	×		×
	U0182:00											×	×
	U0214:00													×
	U0401:68	-		-		-		-	-		-		-
	U0401:92	-		-		-		-	-		-		-
	U0402:68						-	-	-		-		-
	U0402:92						-	-	-		-		-
	U0415:68				-	-		-	-		-		-
	U0415:92				-	-		-	-		-		-
	U0452:92									-	-		-
	U0483:68											-	-
	U0483:92											-	-
	U0515:68													-
	U0515:92													-
	U2005:86	-		-		-		-	-		-		-
M-MDS display module		“Fail” display pattern
PCM		×		×		×		×	×		×		×
EPS			×	×		×		×	×		×		×
ABS					×	×		×	×		×		×
TCM							×	×	×		×		×
GEM									×		×		×
RCM										×	×		×
AFS^*1												×	×
RKE^*2														×
IC															×

*1 :With AFS (adaptive front lighting system)

*2 :With advanced keyless and push button start system

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between PCM and connector C-02

• PCM malfunction

System wiring diagram

am3zzw00008812

Inspection item

• PCM connector

• Wiring harness between PCM 1AE and connector C-02

• Wiring harness between PCM terminal 1AI and vconnector C-02

• PCM

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between EHPAS control module and branch A

• EHPAS control module malfunction

System wiring diagram

am3zzw00008813

Inspection item

• TCM connector

• Wiring harness between EHPAS control module terminal 2D and branch A

• Wiring harness between EHPAS control module terminal 2B and branch A

• EHPAS control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between branch A and connector C-41

• Connector C-41 malfunction

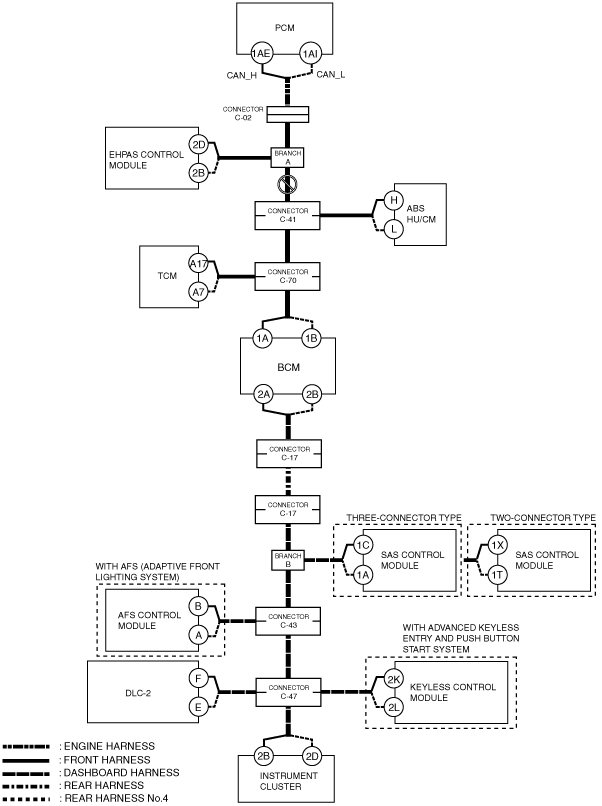

System wiring diagram

am3zzw00008814

Inspection item

• Connector C-41

• Wiring harness between branch A and connector C-41

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between ABS HU/CM and connector C-41

• ABS HU/CM malfunction

System wiring diagram

am3zzw00008815

Inspection item

• ABS HU/CM connector

• Wiring harness between ABS HU/CM terminal H and connector C-41

• Wiring harness between ABS HU/CM terminal L and connector C-41

• ABS HU/CM

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connector C-41 and connector C-70

• Connector C-41 malfunction

• Connector C-70 malfunction

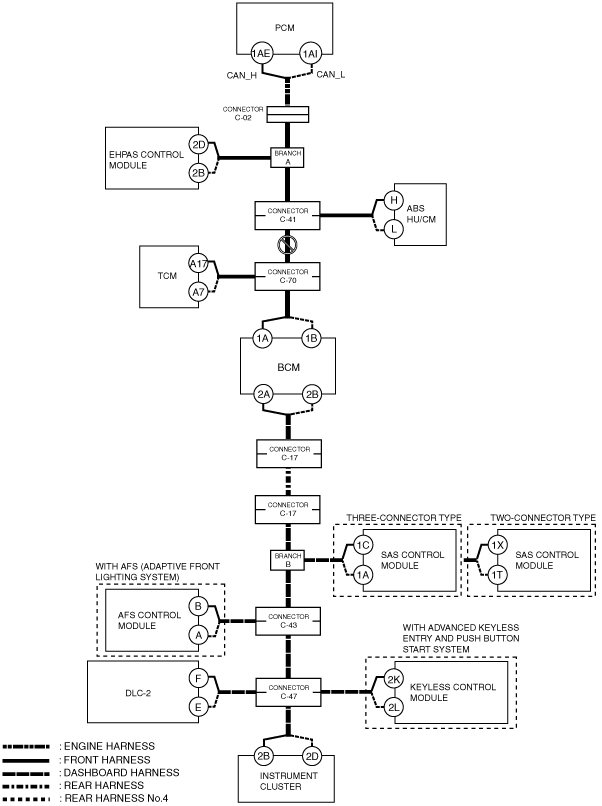

System wiring diagram

am3zzw00008816

Inspection item

• Connector C-41

• Connector C-70

• Wiring harness between connector C-41 and connector C-70

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness TCM and connector C-70

• Connector C-70 malfunction

• TCM malfunction

System wiring diagram

am3zzw00008817

Inspection item

• TCM connector

• Connector C-70

• Wiring harness between TCM terminal A17 and connector C-70

• Wiring harness between TCM terminal A7 and connector C-70

• TCM

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness connector C-70 and BCM

• Connector C-70 malfunction

• BCM malfunction

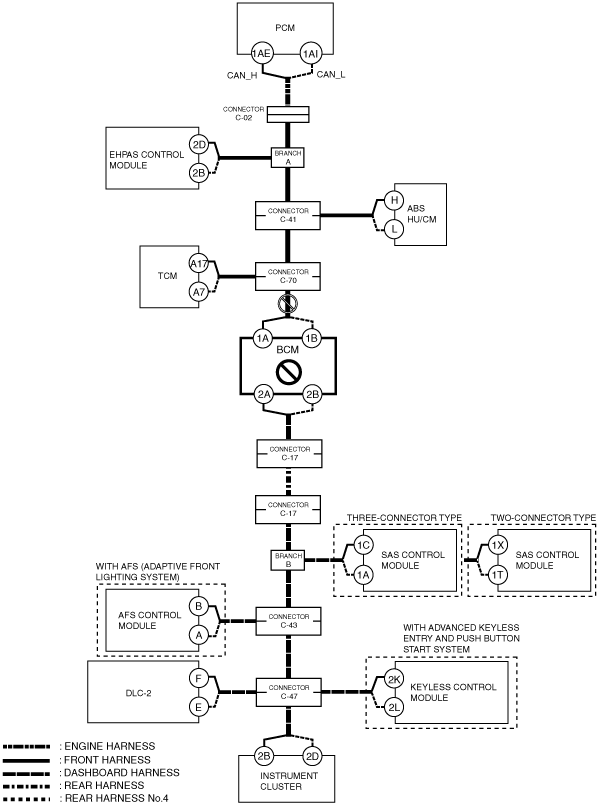

System wiring diagram

am3zzw00008818

Inspection item

• BCM connector

• Connector C-70

• Wiring harness between BCM terminal 1A and connector C-70

• Wiring harness between BCM terminal 1B and connector C-70

• BCM

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connector BCM and connector C-17

• Open circuit in wiring harness between connector C-17 and branch B

• Connector C-17 malfunction

• BCM malfunction

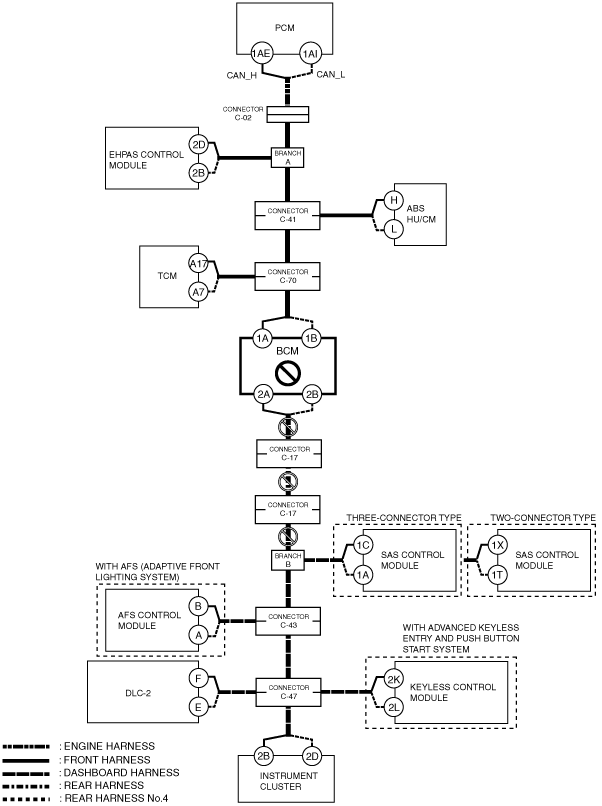

System wiring diagram

am3zzw00008819

Inspection item

• Connector C-17

• BCM connector

• Wiring harness between BCM terminal 2A and connector C-17

• Wiring harness between BCM terminal 2B and connector C-17

• Wiring harness between connector C-17 and branch B

• BCM

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between SAS control module and branch B

• SAS control module malfunction

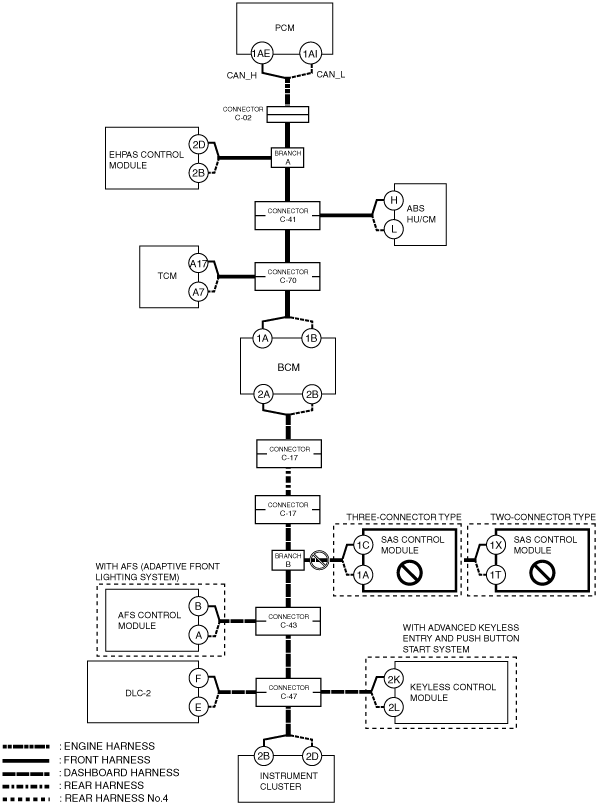

System wiring diagram

am3zzw00008820

Inspection item

Three-connector type

• SAS control module connector

• Wiring harness between SAS control module terminal 1C and branch B

• Wiring harness between SAS control module terminal 1A and branch B

• SAS control module

Two-connector type

• SAS control module connector

• Wiring harness between SAS control module terminal 1X and branch B

• Wiring harness between SAS control module terminal 1T and branch B

• SAS control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness branch B and connector C-43

• Connector C-43 malfunction

System wiring diagram

am3zzw00008821

Inspection item

• Connector C-43

• Wiring harness between branch B and connector C-43

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness AFS control module and connector C-43

• Connector C-43 malfunction

• AFS control module malfunction

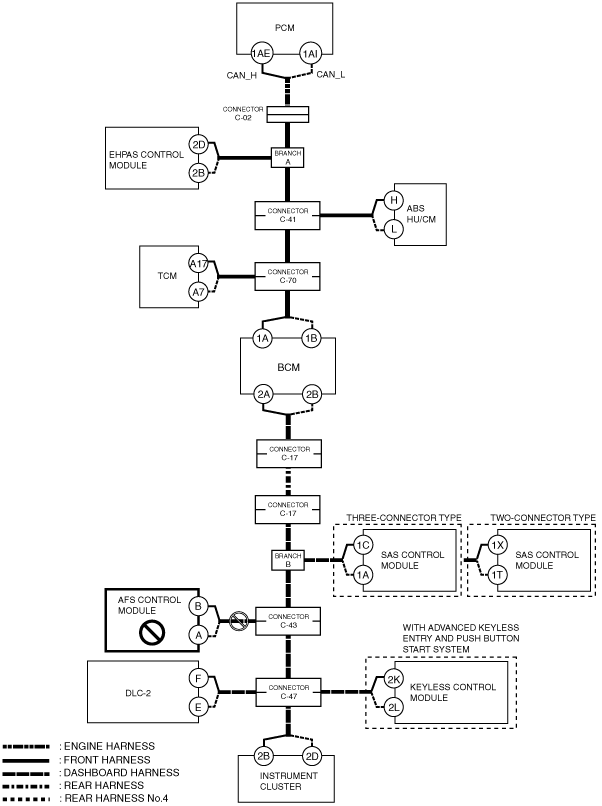

System wiring diagram

am3zzw00008822

Inspection item

• Connector C-43

• AFS control module connector

• Wiring harness between AFS control module terminal B and connector C-43

• Wiring harness between AFS control module terminal A and connector C-43

• AFS control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness connector C-43 and connector C-47

• Connector C-43 malfunction

• Connector C-47 malfunction

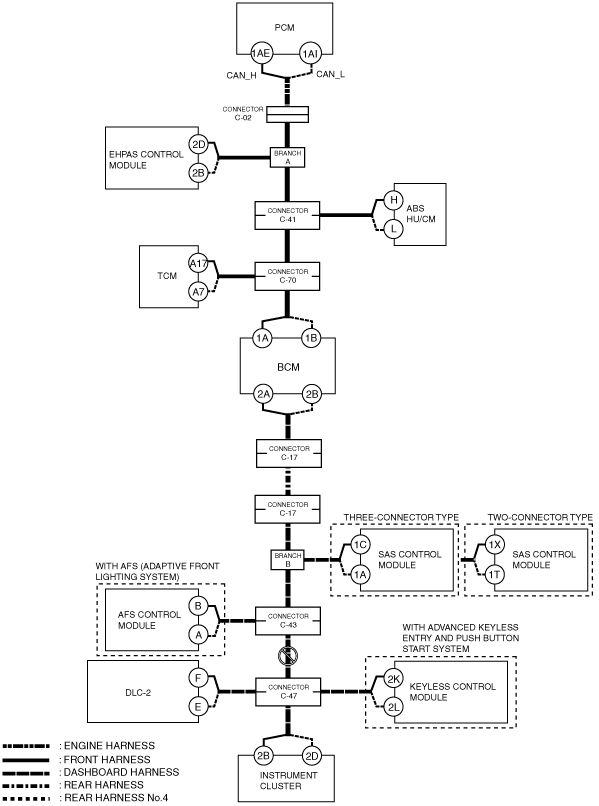

System wiring diagram

am3zzw00008823

Inspection item

• Connector C-43

• Connector C-47

• Wiring harness between connector C-43 and connector C-47

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness keyless control module and connector C-47

• Keyless control module malfunction

System wiring diagram

am3zzw00008824

Inspection item

• Connector C-47

• Keyless control module connector

• Wiring harness between keyless control module terminal 2K and connector C-47

• Wiring harness between keyless control module terminal 2L and connector C-47

• Keyless control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connector C-47 and instrumnet cluster

• Connector C-47 malfunction

• Instrumnet cluster malfunction

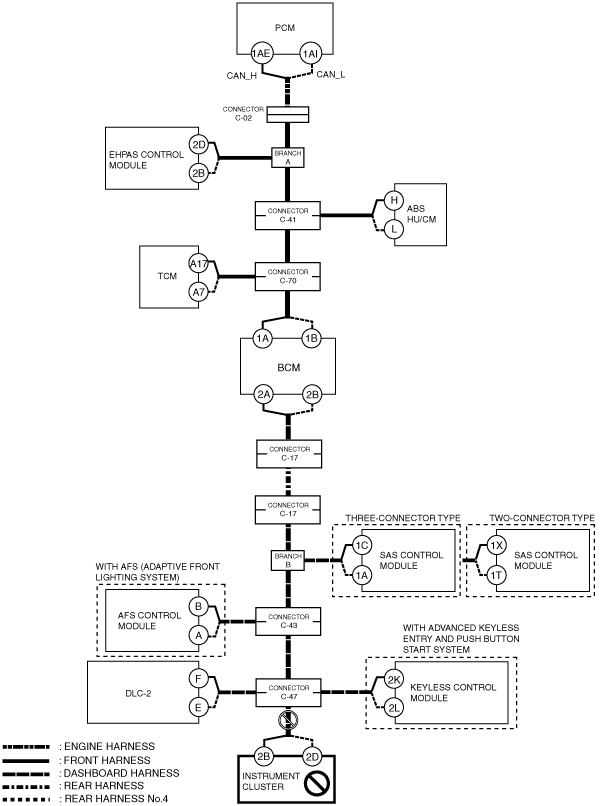

System wiring diagram

am3zzw00008825

Inspection item

• Connector C-47

• Instrumnet cluster connector

• Wiring harness between connector C-47 and instrumnet cluster terminal 2B

• Wiring harness between connector C-47 and instrumnet cluster terminal 2D

• Instrumnet cluster
