FRONT BUMPER DISASSEMBLY/ASSEMBLY
id091000800400
Standard Type
Type A
1. Remove the headlight cleaner hose. (See HEADLIGHT CLEANER HOSE REMOVAL/INSTALLATION)
2. Disassemble in the order indicated in the table.

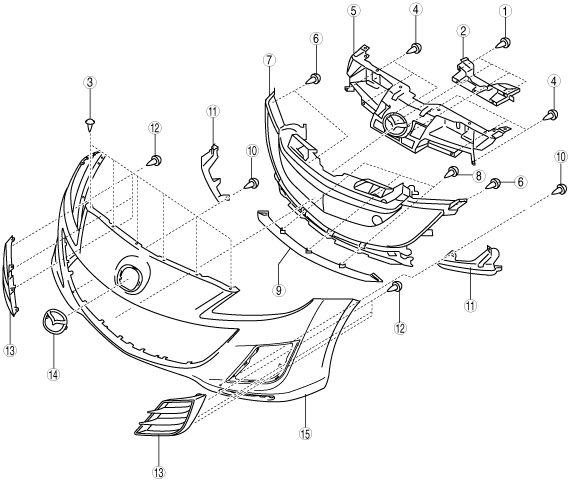

am3zzw00006184
|
|
1
|
Screw A
|
|
2
|
Guard cover
|
|
3
|
Fastener B
|
|
4
|
Screw C
|
|
5
|
Intake air guide
|
|
6
|
Fastener D
|
|
7
|
Front bumper mesh
|
|
8
|
Screw E
|
|
9
|
Airdam skirt
|
|
10
|
Screw F
|
|
11
|
Front bumper cover
|
|
12
|
Screw G
|
|
13
|
Front fog light hole cover
|
|
14
|
Ornament
|
|
15
|
Front bumper facia
|
3. Assemble in the reverse order of disassembly.
Type B
1. Disassemble in the order indicated in the table.

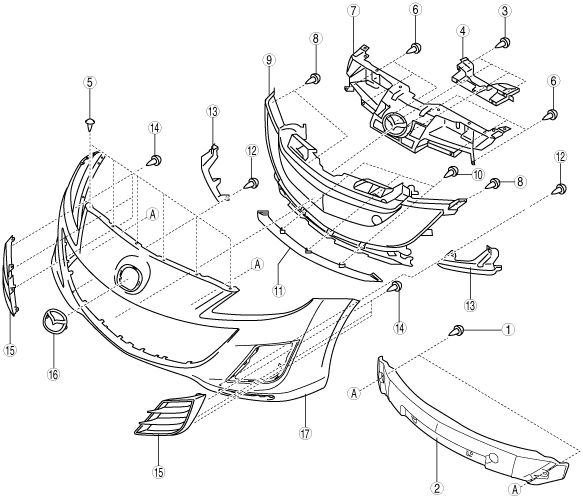

am3zzw00006111
|
|
1
|
Fastener A
|
|
2
|
Front energy-absorbing form
|
|
3
|
Screw B
|
|
4
|
Guard cover
|
|
5
|
Fastener C
|
|
6
|
Screw D
|
|
7
|
Intake air guide
|
|
8
|
Fastener E
|
|
9
|
Front bumper mesh
|
|
10
|
Screw F
|
|
11
|
Airdam skirt
|
|
12
|
Screw G
|
|
13
|
Front bumper cover
|
|
14
|
Screw H
|
|
15
|
Front fog light hole cover
|
|
16
|
Ornament
|
|
17
|
Front bumper facia
|
2. Assemble in the reverse order of disassembly.
Sports Type
1. Remove the front fog lights. (Vehicles with the front fog lights) (See FRONT FOG LIGHT REMOVAL/INSTALLATION)
2. Remove the headlight cleaner hose. (See HEADLIGHT CLEANER HOSE REMOVAL/INSTALLATION)
3. Disassemble in the order indicated in the table.

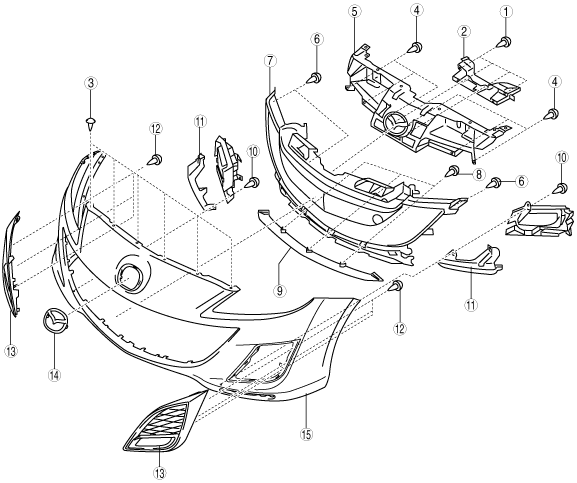

am3zzw00006185
|
|
1
|
Screw A
|
|
2
|
Guard cover
|
|
3
|
Fastener B
|
|
4
|
Screw C
|
|
5
|
Intake air guide
|
|
6
|
Fastener D
|
|
7
|
Front bumper mesh
|
|
8
|
Screw E
|
|
9
|
Airdam skirt
|
|
10
|
Screw F
|
|
11
|
Front bumper cover
|
|
12
|
Screw G
|
|
13
|
Front fog light cover
|
|
14
|
Ornament
|
|
15
|
Front bumper facia
|
4. Assemble in the reverse order of disassembly.
MPS TYPE
1. Remove the front fog lights. (See FRONT FOG LIGHT REMOVAL/INSTALLATION)
2. Remove the headlight cleaner hose. (See HEADLIGHT CLEANER HOSE REMOVAL/INSTALLATION)
3. Disassemble in the order indicated in the table.

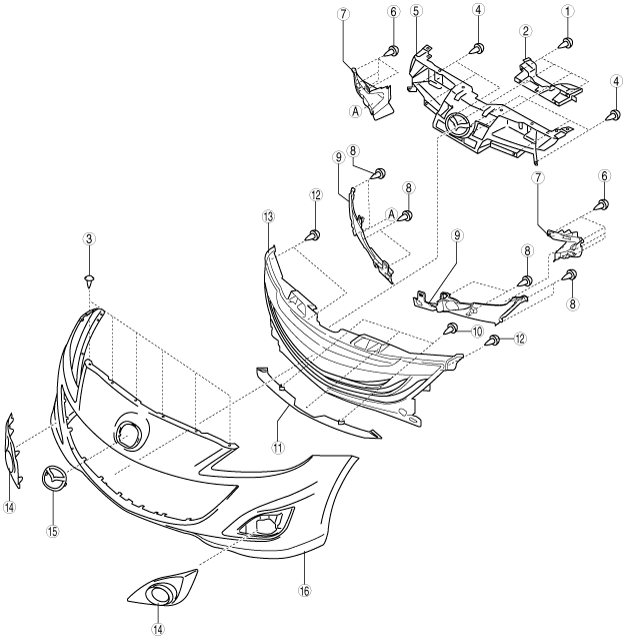

am3zzw00008337
|
|
1
|
Screw A
|
|
2
|
Guard cover
|
|
3
|
Fastener B
|
|
4
|
Screw C
|
|
5
|
Intake air guide
|
|
6
|
Screw D
|
|
7
|
Seal plate
|
|
8
|
Screw E
|
|
9
|
Front bumper mesh rear
|
|
10
|
Screw F
|
|
11
|
Airdam skirt
|
|
12
|
Fastener G
|
|
13
|
Front bumper mesh front
|
|
14
|
Front fog light cover
|
|
15
|
Ornament
|
|
16
|
Front bumper facia
|
4. Assemble in the reverse order of disassembly.
