FRONT FENDER PANEL REMOVAL/INSTALLATION

id091000801000

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

(2)  Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

(3)  Front fender molding (See COWL GRILLE REMOVAL/INSTALLATION.)

(4)  Side step molding (See SIDE STEP MOLDING REMOVAL.)

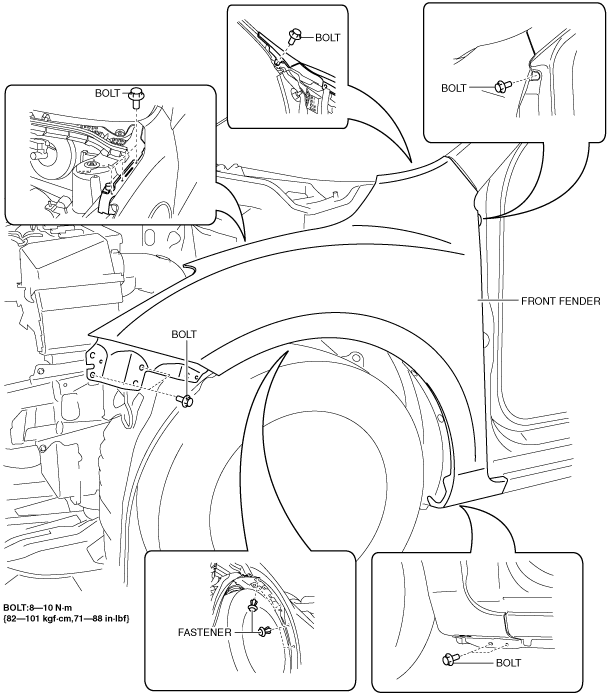

3.  Remove fasteners and bolts, then remove the front fender panel.

am3uuw00003909

4.  Install in the reverse order of removal.

5.  Adjust the headlight aiming. (See HEADLIGHT AIMING)
