COWL PANEL REMOVAL/INSTALLATION

id091000802000

1.  Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION)

2.  Remove the front fender molding. (See COWL GRILLE REMOVAL/INSTALLATION)

3.  Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION)

4.  Remove the washer hose grommet from the cowl panel and disconnect the front washer hose.

5.  Remove the windshield wiper motor. (See WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION)

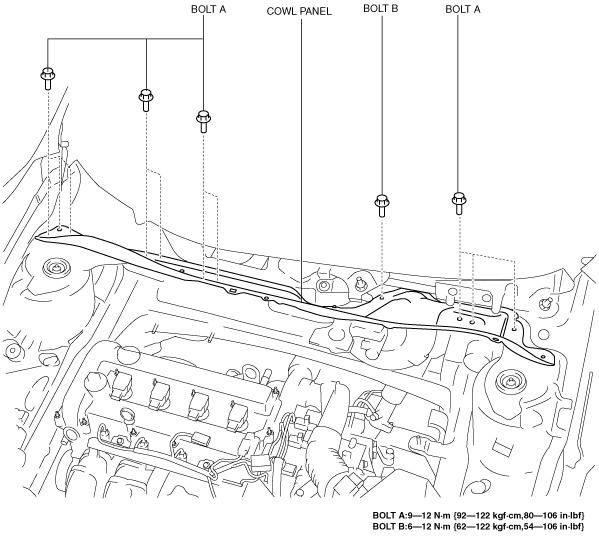

6.  Remove the bolts A and bolt B.

am3uuw00003913

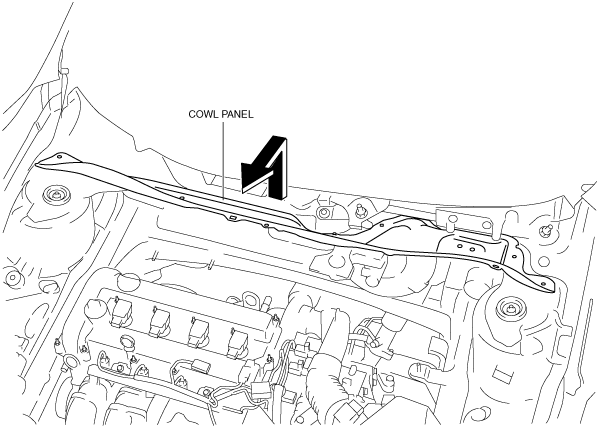

7.  Remove the cowl panel in the direction of the arrow shown in the figure.

am3uuw00003914

8.  Install in the reverse order of removal.
