SEAL PLATE REMOVAL/INSTALLATION

id091000889000

1.  Disconnect the negative battery cable.

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION)

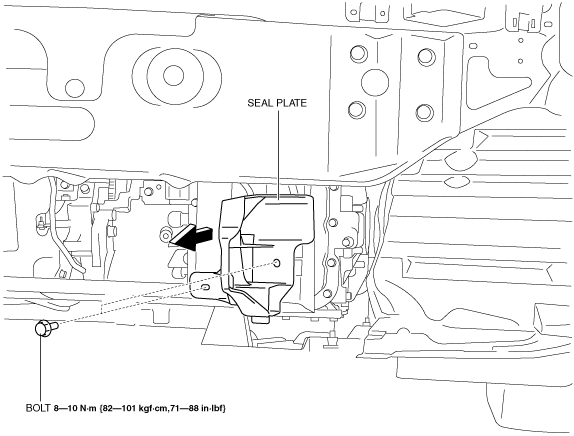

3.  Remove the bolt.

am3uuw00005452

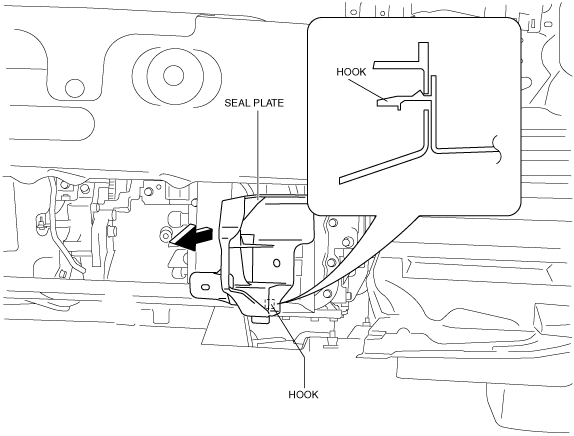

4.  Pull the seal plate, then remove the hook.

am3uuw00003897

5.  Install in the reverse order of remove.
