POWER WINDOW SYSTEM WIRING DIAGRAM

id091200100300

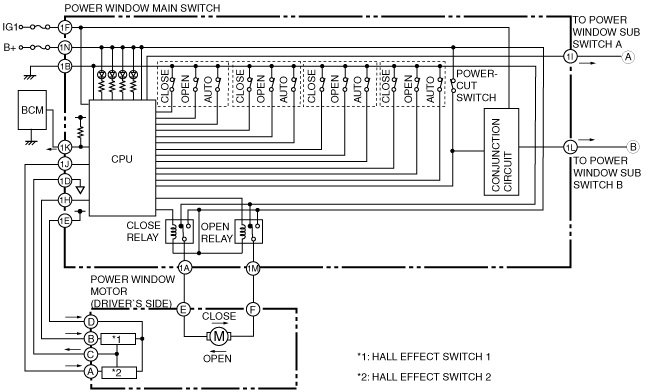

Auto-open/close Function for All Windows

Power window main switch

am3zzn00003167

Power window subswitch

am3zzn00003168

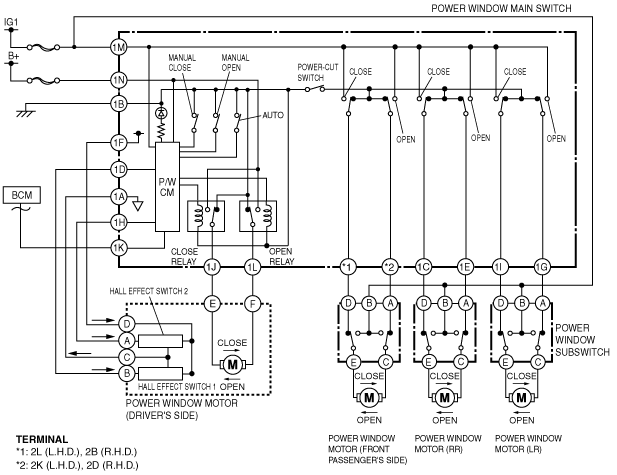

Auto-open/close Function for Driver-side

Power window main switch

am3zzn00003135
