POWER WINDOW SUBSWITCH INSPECTION

id091200419200

Auto-open/close Function for All Windows

1. Disconnect the negative battery cable.

2. Remove the inner garnish. (front passenger’s side) (See INNER GARNISH REMOVAL/INSTALLATION.)

3. Remove the front door trim. (front passenger’s side) (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

4. Remove the rear door trim. (rear side) (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

5. Connect the negative battery cable.

6. Measure the voltage at each terminal.

• If the voltage is not as specified in the terminal voltage table, inspect the parts under “Inspection item(s)” and related wiring harnesses.

― If the system does not work properly even though the inspection items or related wiring harnesses do not have any malfunction, replace the power window subswitch.

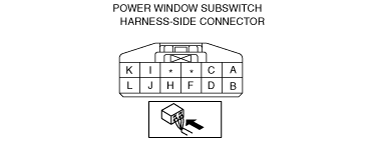

Terminal voltage table (reference)

am3zzw00006758

Terminal

Signal name

Connected to

Measured condition

Voltage (V)

Inspection item (s)

A

Communication

Power window main switch

Because this terminal is for communication, good/no good judgment by terminal voltage is not possible

•  Power window main switch (See POWER WINDOW MAIN SWITCH INSPECTION.)

•  Related wiring harness

B

Power-cut signal

Power window main switch

Switch the Ignition to ON and power-cut switch at UNLOCK

B+

•  Power window main switch (See POWER WINDOW MAIN SWITCH INSPECTION.)

•  Related wiring harness

C

Power supply

P.WIND 30 A fuse

Under any condition

B+

•  P.WIND 30 A fuse

•  Related wiring harness

D

Pulse 2

Power window motor

Door glass operating

Alternates between 1.0 or less and B+

•  Power window motor (See POWER WINDOW MOTOR INSPECTION.)

•  Related wiring harnesses

E

—

—

—

—

—

F

Pulse 1

Power window motor

Door glass operating

Alternates between 1.0 or less and B+

•  Power window motor (See POWER WINDOW MOTOR INSPECTION.)

•  Related wiring harnesses

G

—

—

—

—

—

H

Close output

Power window motor

While door glass is closing

B+

•  Power window motor (See POWER WINDOW MOTOR INSPECTION.)

•  Related wiring harnesses

Other

1.0 or less

I

Open output

Power window motor

While door glass is opening

B+

•  Power window motor (See POWER WINDOW MOTOR INSPECTION.)

•  Related wiring harnesses

Other

1.0 or less

J

Sensor power supply

Power window motor

Switch the Ignition to ON

B+

•  Power window motor (See POWER WINDOW MOTOR INSPECTION.)

•  Related wiring harness

Switch the Ignition to off

1.0 or less

K

GND

Body ground

Under any condition

1.0 or less

•  Related wiring harnesses

L

Sensor ground

Power window motor

Under any condition

1.0 or less

•  Power window motor (See POWER WINDOW MOTOR INSPECTION.)

•  Related wiring harnesses

Terminal	Signal name	Connected to	Measured condition	Voltage (V)	Inspection item (s)
A	Communication	Power window main switch	Because this terminal is for communication, good/no good judgment by terminal voltage is not possible	• Power window main switch (See POWER WINDOW MAIN SWITCH INSPECTION.) • Related wiring harness
B	Power-cut signal	Power window main switch	Switch the Ignition to ON and power-cut switch at UNLOCK	B+	• Power window main switch (See POWER WINDOW MAIN SWITCH INSPECTION.) • Related wiring harness
C	Power supply	P.WIND 30 A fuse	Under any condition	B+	• P.WIND 30 A fuse • Related wiring harness
D	Pulse 2	Power window motor	Door glass operating	Alternates between 1.0 or less and B+	• Power window motor (See POWER WINDOW MOTOR INSPECTION.) • Related wiring harnesses
E	—	—	—	—	—
F	Pulse 1	Power window motor	Door glass operating	Alternates between 1.0 or less and B+	• Power window motor (See POWER WINDOW MOTOR INSPECTION.) • Related wiring harnesses
G	—	—	—	—	—
H	Close output	Power window motor	While door glass is closing	B+	• Power window motor (See POWER WINDOW MOTOR INSPECTION.) • Related wiring harnesses
Other	1.0 or less
I	Open output	Power window motor	While door glass is opening	B+	• Power window motor (See POWER WINDOW MOTOR INSPECTION.) • Related wiring harnesses
Other	1.0 or less
J	Sensor power supply	Power window motor	Switch the Ignition to ON	B+	• Power window motor (See POWER WINDOW MOTOR INSPECTION.) • Related wiring harness
Switch the Ignition to off	1.0 or less
K	GND	Body ground	Under any condition	1.0 or less	• Related wiring harnesses
L	Sensor ground	Power window motor	Under any condition	1.0 or less	• Power window motor (See POWER WINDOW MOTOR INSPECTION.) • Related wiring harnesses

Auto-open/close Function for Driver-side

Passenger's side

1. Disconnect the negative battery cable.

2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)

3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

4. Remove the power window subswitch. (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY.)

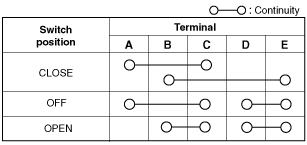

5. Verify that the continuity is as indicated in the table using a tester.

am3uuw00003385

• If not as indicated in the table, replace the power window subswitch.

am3uuw00003386

Rear

1. Disconnect the negative battery cable.

2. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

3. Remove the power window subswitch. (See REAR DOOR TRIM DISASSEMBLY/ASSEMBLY.)

4. Verify that the continuity is as indicated in the table using a tester.

am3uuw00003385

• If not as indicated in the table, replace the power window subswitch.

am3uuw00003386
